Auto Pallet Robot ASRS 4-Way Shuttle Car Heavy Duty for Automated Retrieval in Automated Warehousing System

Product Description

Warehouse shuttle system diagram
System layout overview
Smart factory layout
Applying Scenario

Targeted Industrial Environments

  • Line side library of smart factory workshop.
  • Frozen/fresh food warehouse.
  • Logistics transition center.
  • Unmanned dark warehouse.

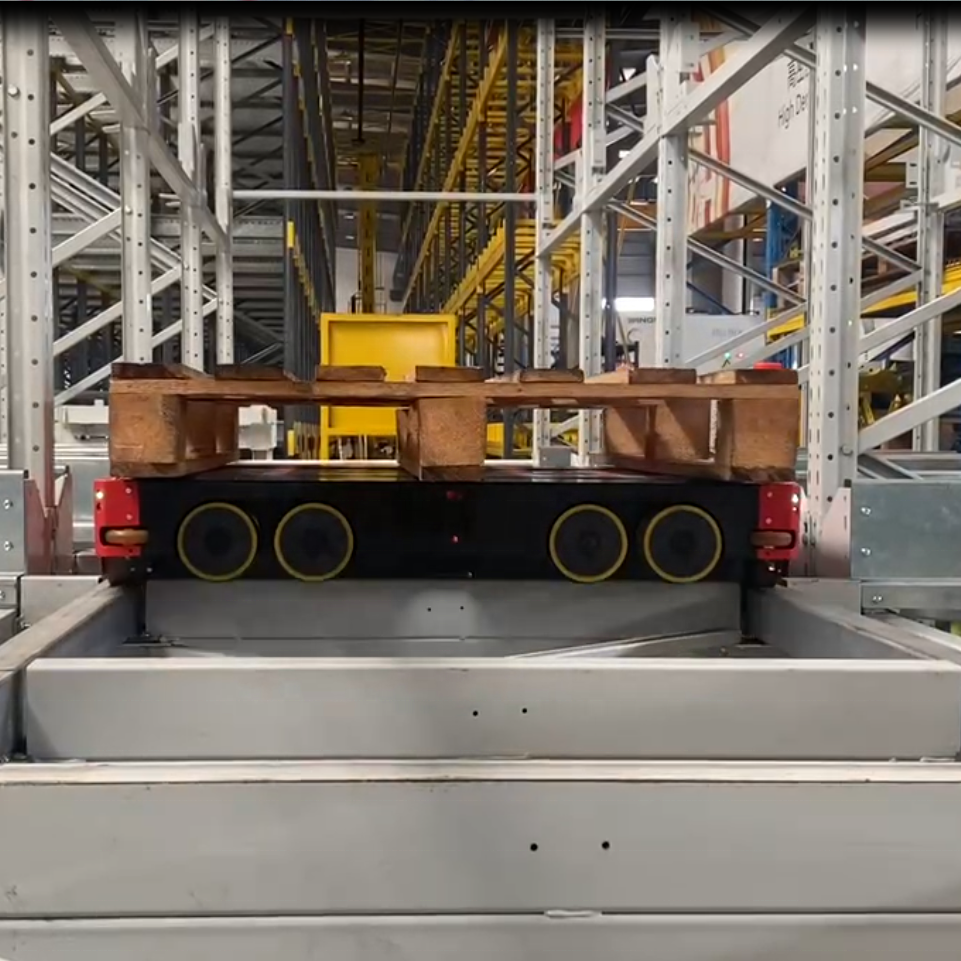

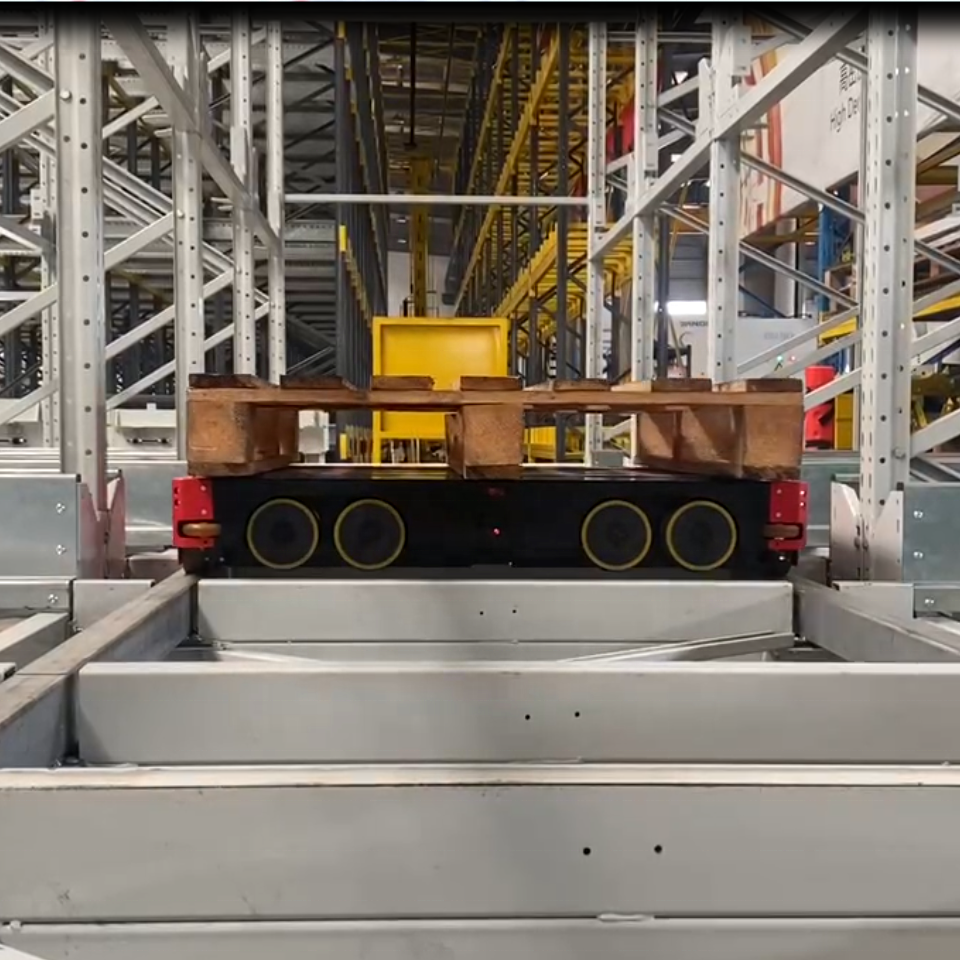

Four-way shuttle system illustration
High-Tech Automation

Four-way Shuttle System

Four-way Shuttle system is a high-tech warehouse handling equipment which functions by traveling in four-directions, changing track in situ, handling automatically, monitoring smartly and managing traffic dynamically.

System technical details
Key Advantages

Strategic Logistics Benefits

  • Reduced investment and improved availability of storage space.
  • Travel in four directions, reaching any location in the warehouse.
  • Electricity monitoring and automatic charging (multilevel threshold control).

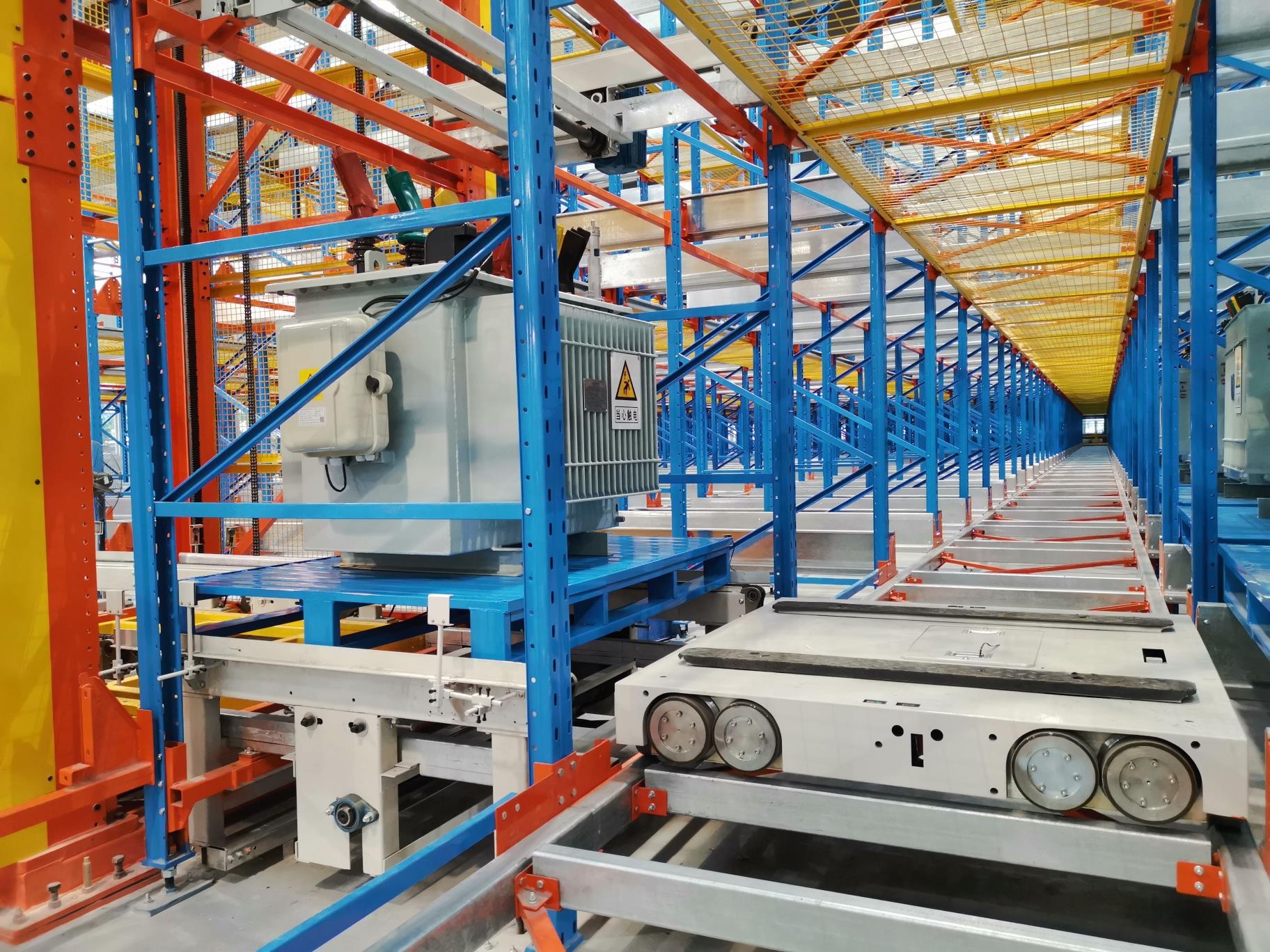

Warehouse installation detail Warehouse automation system
System Features

Technical Features

  • The four-way shuttle is an intelligent handling device capable of both vertical and horizontal traveling.
  • The four-way shuttle is highly flexible, which can freely change the operation aisle. In addition, it is possible to adjust the system capacity by adding or reducing the number of shuttles. When necessary, a shuttle fleet may be established to respond to the system peak, thus solving the bottleneck of entry and exit operations.
  • Four-way shuttles are interchangeable. When a shuttle or lift fails, other shuttles or lifts can be dispatched by the dispatching system for completing the operation without affecting the system capacity.
  • The four-way shuttle is not only suitable for low-flow and high-density storage, but also suitable for high-flow and high-density storage. It can maximize the efficiency, cost and utilization of resources.

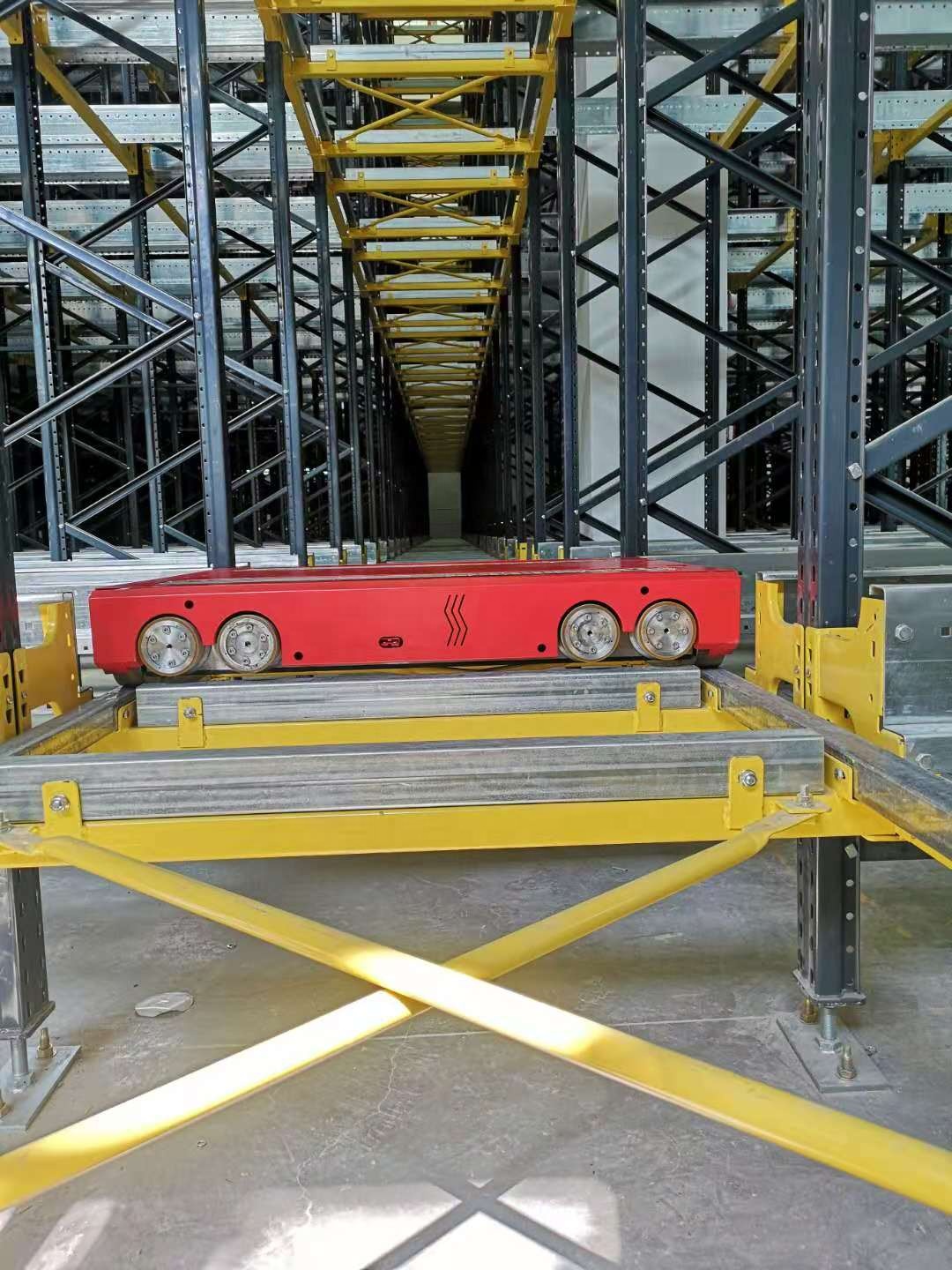

Shuttle car tracks Structural details of the shuttle
Integration with system structure
Warehouse Control System display
Control Software

Warehouse Control System (WCS)

The Warehouse Control System (WCS) serves as a bridge between the Warehouse Management System (WMS) and a broad range of material handling equipment such as conveyor systems, automated storage and retrieval systems, carousels, sorters, palletizers and so on.

Acting as a "hub", the WCS is responsible for keeping everything running smoothly and maximizing the efficiency of material handling systems and subsystems.

System software interface

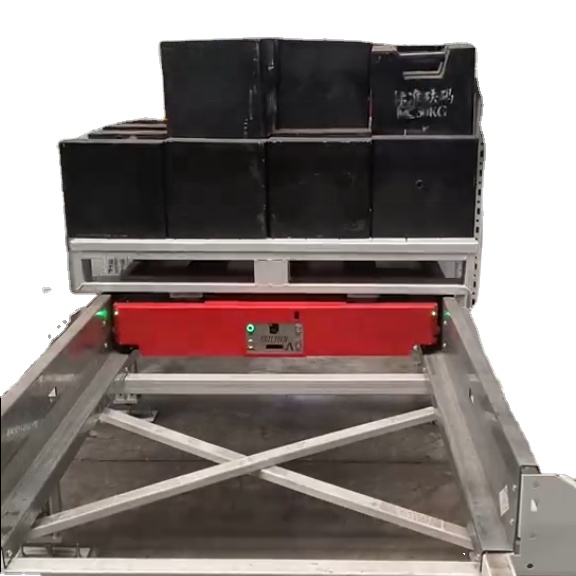

Operations showcase 1 Operations showcase 2 Operations showcase 3
Industrial rack structure 1 Industrial rack structure 2 Industrial rack structure 3
Testing and validation 1 Testing and validation 2 Testing and validation 3
Real project installation 1 Real project installation 2 Real project installation 3
System schematic blueprint 1 System installation reference 1 System schematic blueprint 2
System installation reference 2 System schematic blueprint 3 System installation reference 3
System schematic blueprint 4 System installation reference 4 System schematic blueprint 5
System schematic blueprint 6 System schematic blueprint 7 System schematic blueprint 8
System deployment framework
