Primary-secondary Shuttle Carrier Solution

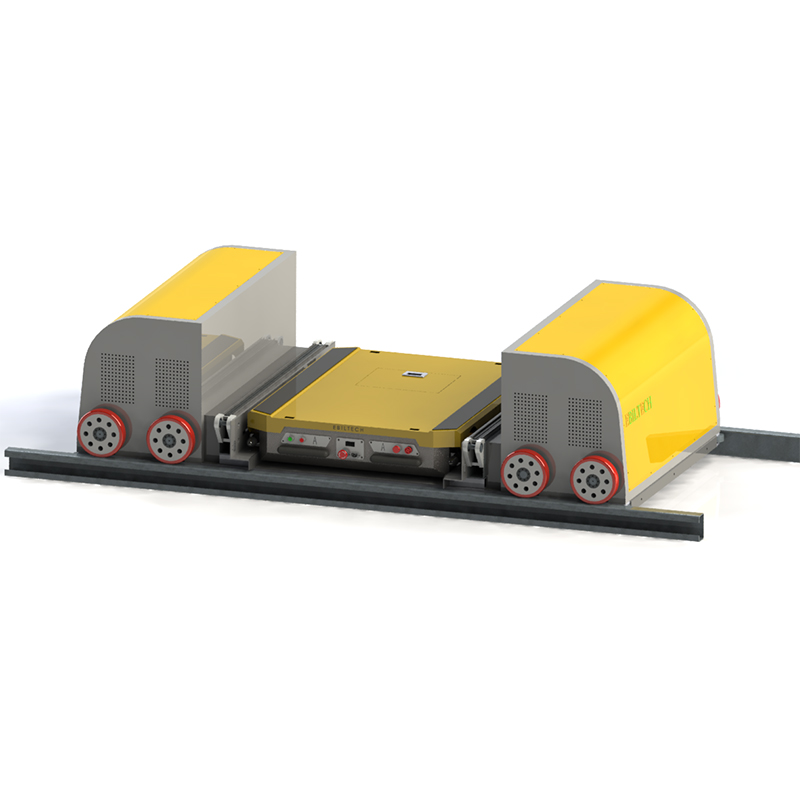

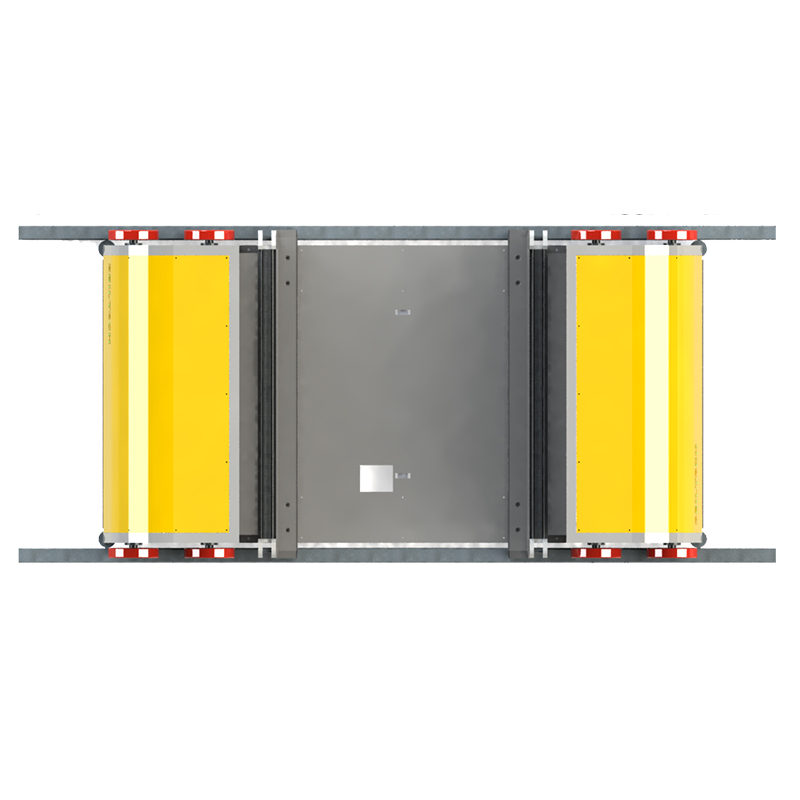

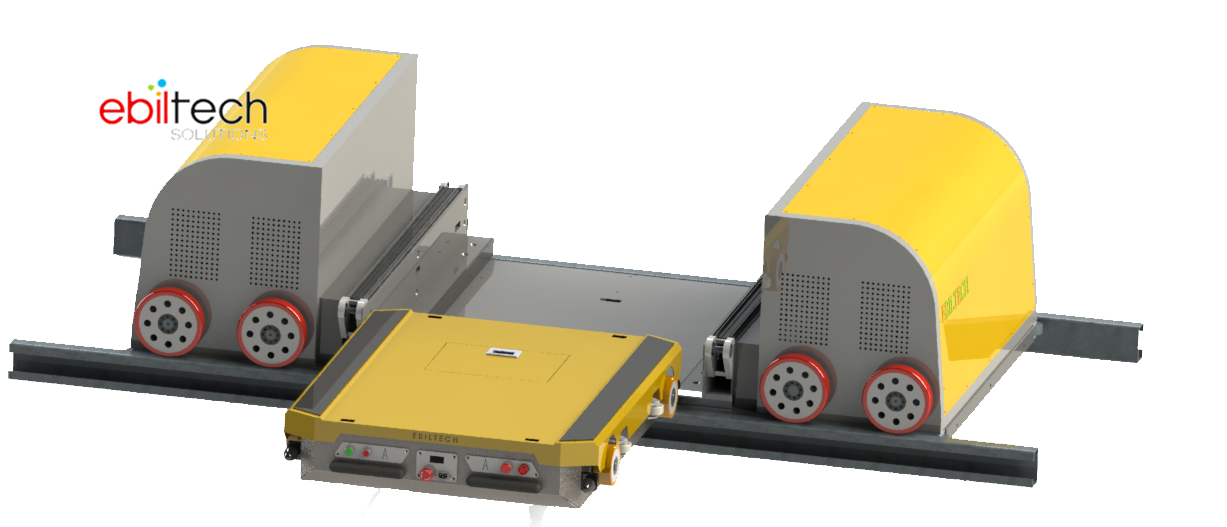

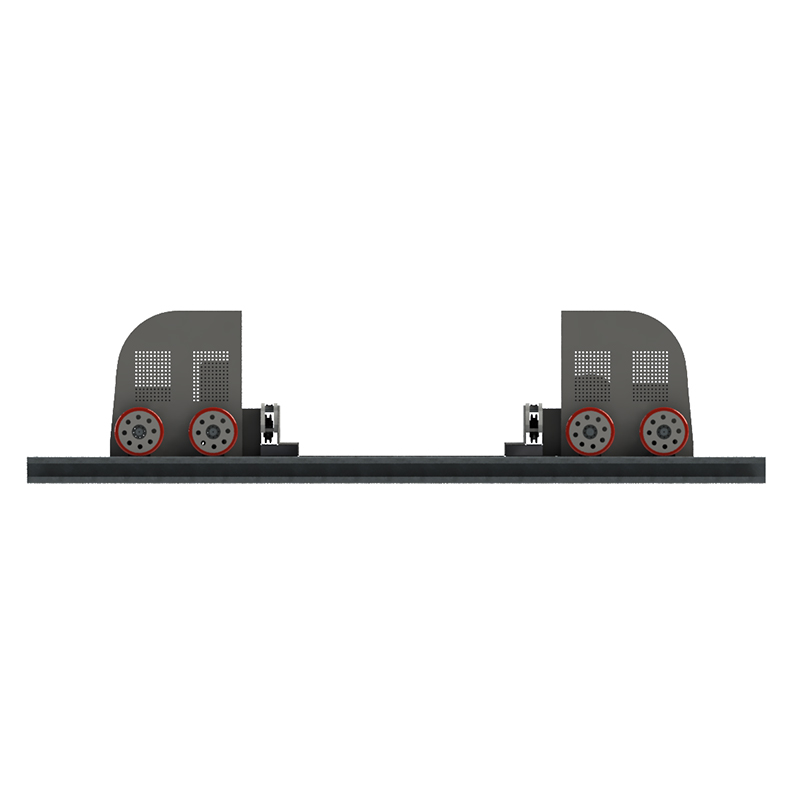

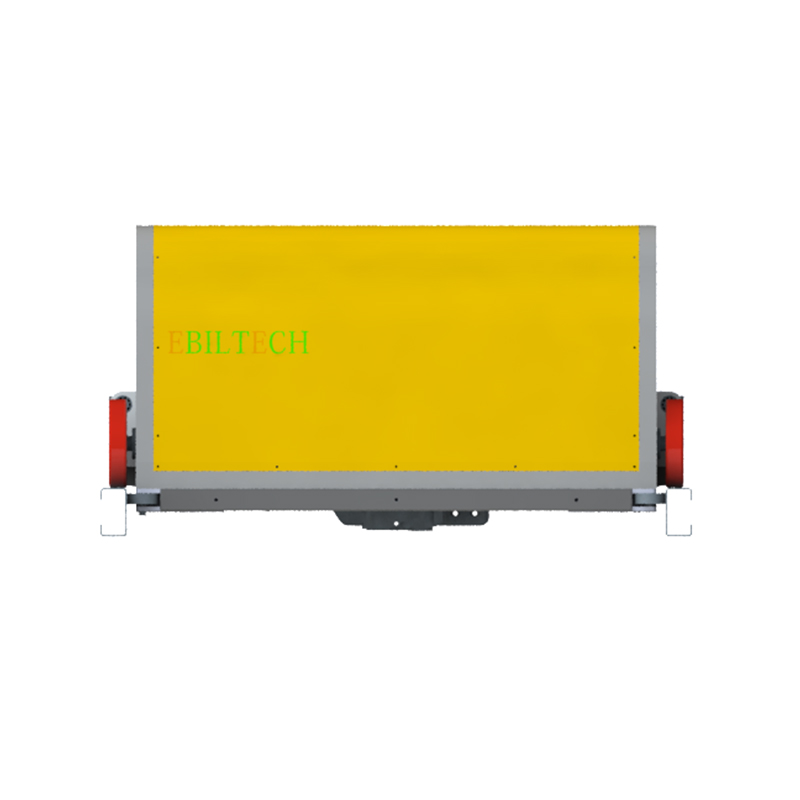

The Shuttle carrier solution is a full automatic and high density storage system which takes the shuttle as a core. It consists of radio shuttle racks, longitudinal movement shuttle, lateral movement mother shuttle, vertical direction movement elevator, conveyor lines, and so on.
According to practical application requirements, in-out stock can choose the way of FIFO or FILO. Shuttle and mother shuttle can be one-to-one matched or several-for-one matched. With the adjustment of WMS, WCS, and equipment scheduling soft management, the whole system is suitable for single variety and large scale situations, such as food, drink, paper, and more.

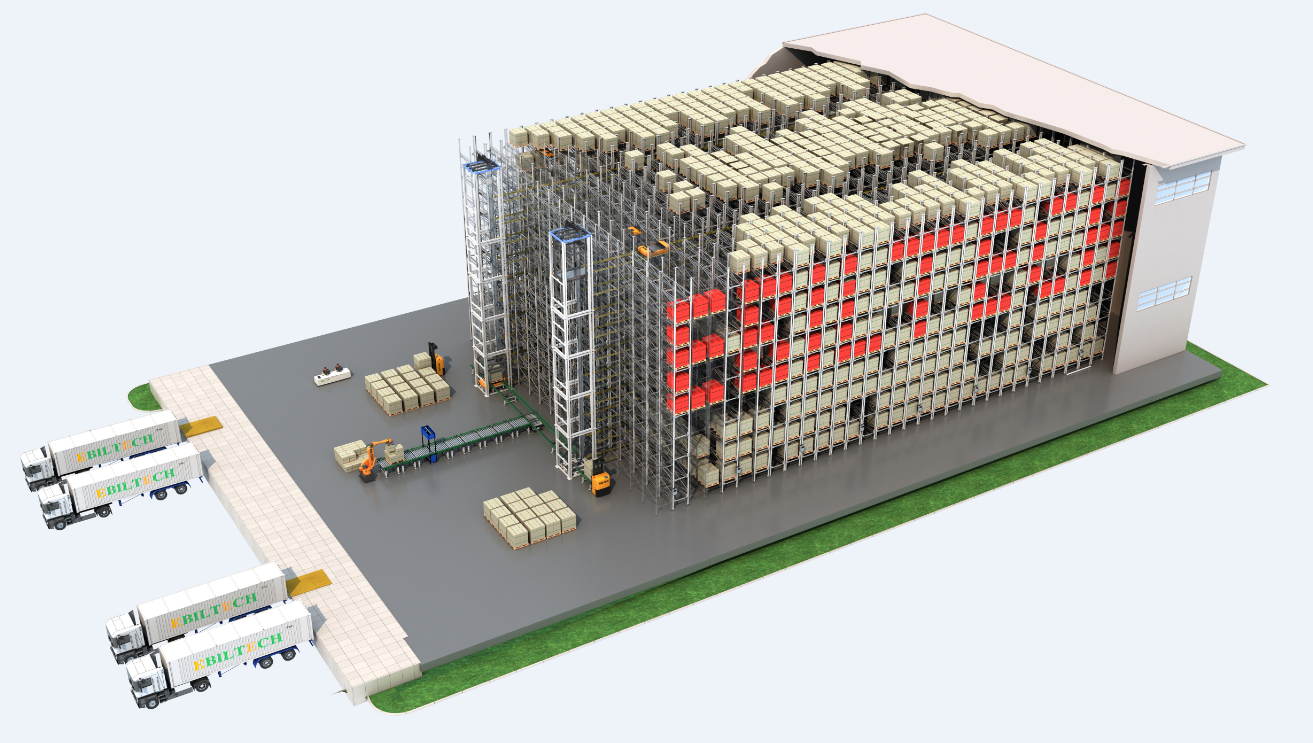

Technical Specifications

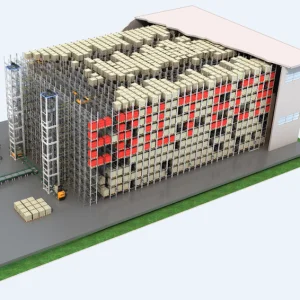

◈ Pallet size: L1200 X W1200 X H1000; weight: 1000kg/pallet
◈ Cargo space: 22 rows x 31 columns x 9 levels
◈ Total storage: 6138 pallets
◈ Floor area of rack: 43.5m long X 30m wide x 13m high
◈ Workshop floor area: 58.5m long x 38m wide x 14m high

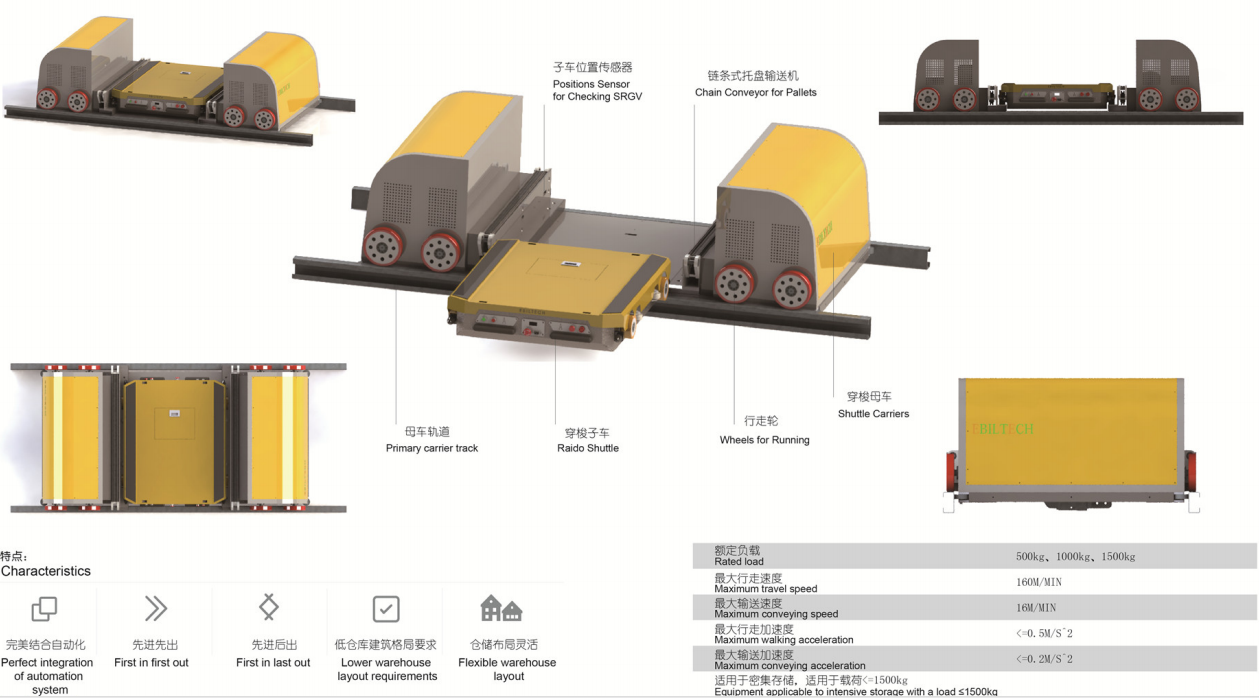

Advantages and Characteristics
✓ Modular design of equipment to achieve system automation.
✓ Additional equipment in later stage, and expandable warehouse-in/out efficiency.
✓ Flexible out-of-stock mode: First In First Out (FIFO) / First In Last Out (FILO).
✓ High flexibility, adaptability, and scalability.
✓ Seamless integration with any ERP system.
✓ Lower logistics overhead and exact, high-speed picking.

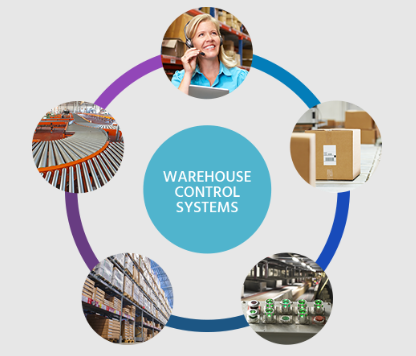

Warehouse Control System (WCS)
The Warehouse Control System (WCS) serves as a bridge between the Warehouse Management System (WMS) and a broad range of material handling equipment such as conveyor systems, automated storage and retrieval systems, carousels, sorters, and palletizers. Acting as a “hub”, the WCS is responsible for keeping everything running smoothly and maximizing the efficiency of material handling systems and subsystems.
System Components & Site Implementation
Frequently Asked Questions
1. Are you a distributor or a manufacturer?
We are a professional and leading manufacturer for nearly 20 years. We produce and export high-quality pallet racking, multi-shuttle systems, radio shuttle racking, and ASRS. Our annual production capacity is 100,000 tons of rack components and 1,000 units of shuttle cars.
2. What sets your shuttle carrier solution apart from competitors?
We have over 40 mechanical, electrical, and software engineers focusing on product innovation and R&D. We possess over 60 national patents and independently develop our own WMS and WCS systems to ensure seamless integration and efficiency.
3. What kind of installation and debugging services do you provide?
We offer comprehensive installation services via experienced teams. For radio shuttle cars, we dispatch engineers to the site for debugging and staff training. For racking systems, we can either provide the full installation team or send engineers to guide your operation.
4. What is the typical manufacturing lead time for an order?
For standard orders, we promise a production time of 20-30 days. As a direct manufacturer, we ensure delivery times are strictly followed according to the formal contract.
5. What is the minimum order quantity (MOQ) and payment terms?
Normally, the MOQ is one 20ft container, though larger quantities qualify for better pricing. Our standard payment terms are T/T or L/C.
6. Does the system support both FIFO and FILO warehouse modes?
Yes, the system is designed for high flexibility. Depending on your specific storage requirements, it can be configured to support either First In First Out (FIFO) or First In Last Out (FILO) operations.
