Where Goods Are Stored in One Column Single Tower for Sheet Metal Storage With Lift Delivers Shelves Directly to the Operator

Product Description

Metal Sheet Tower Title
Automated Storage for Sheet
Automated Storage Unit
Metal Sheet Tower Description:

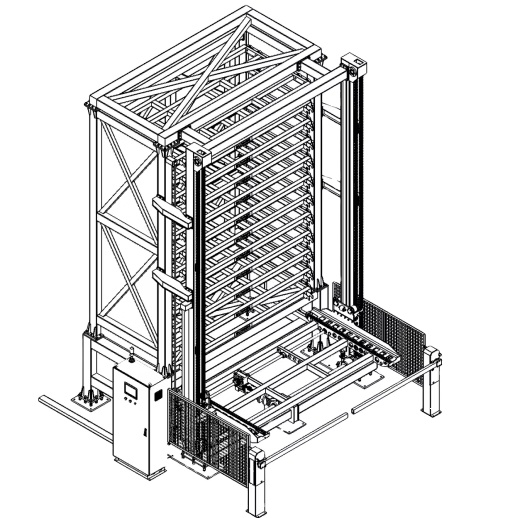

The tower with a selectable floor plan and height consists of a very robust welded structure, adapted on the inside for vertical storage of individual handling units. The containers of the handling units are of welded construction, dimensioned according to typical transport formats and weights of steel plate.

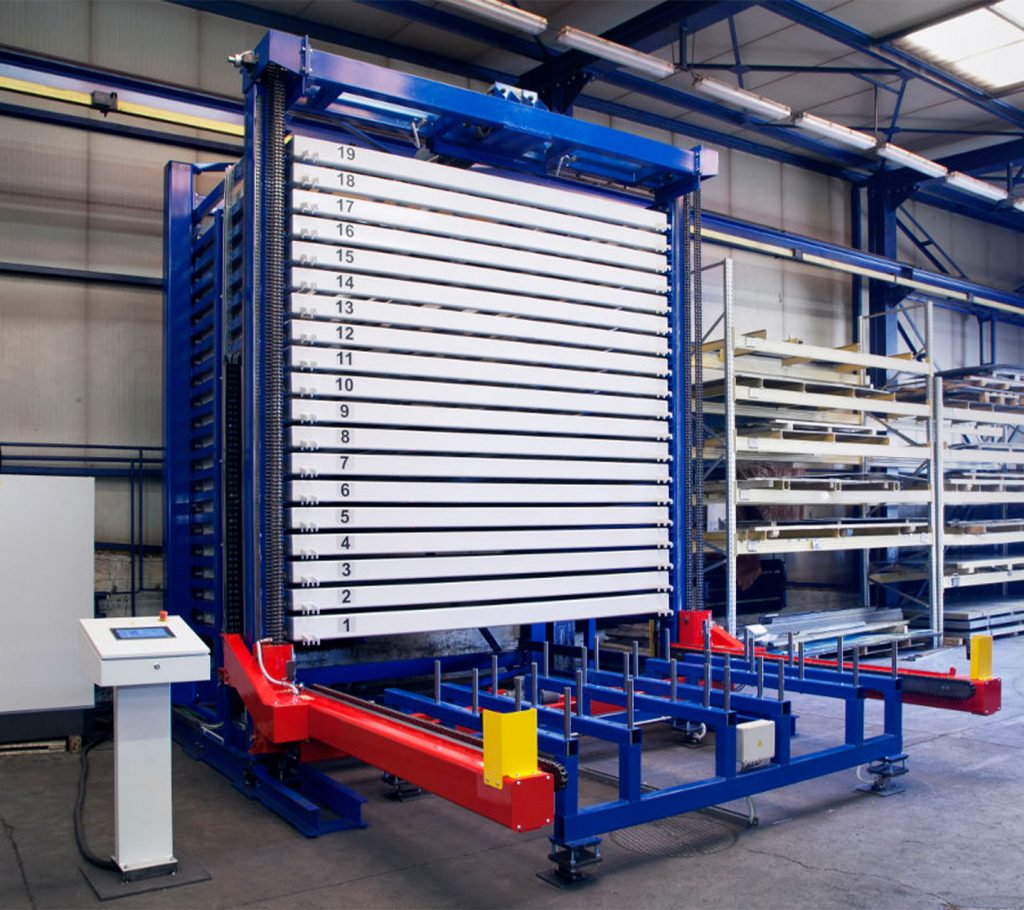

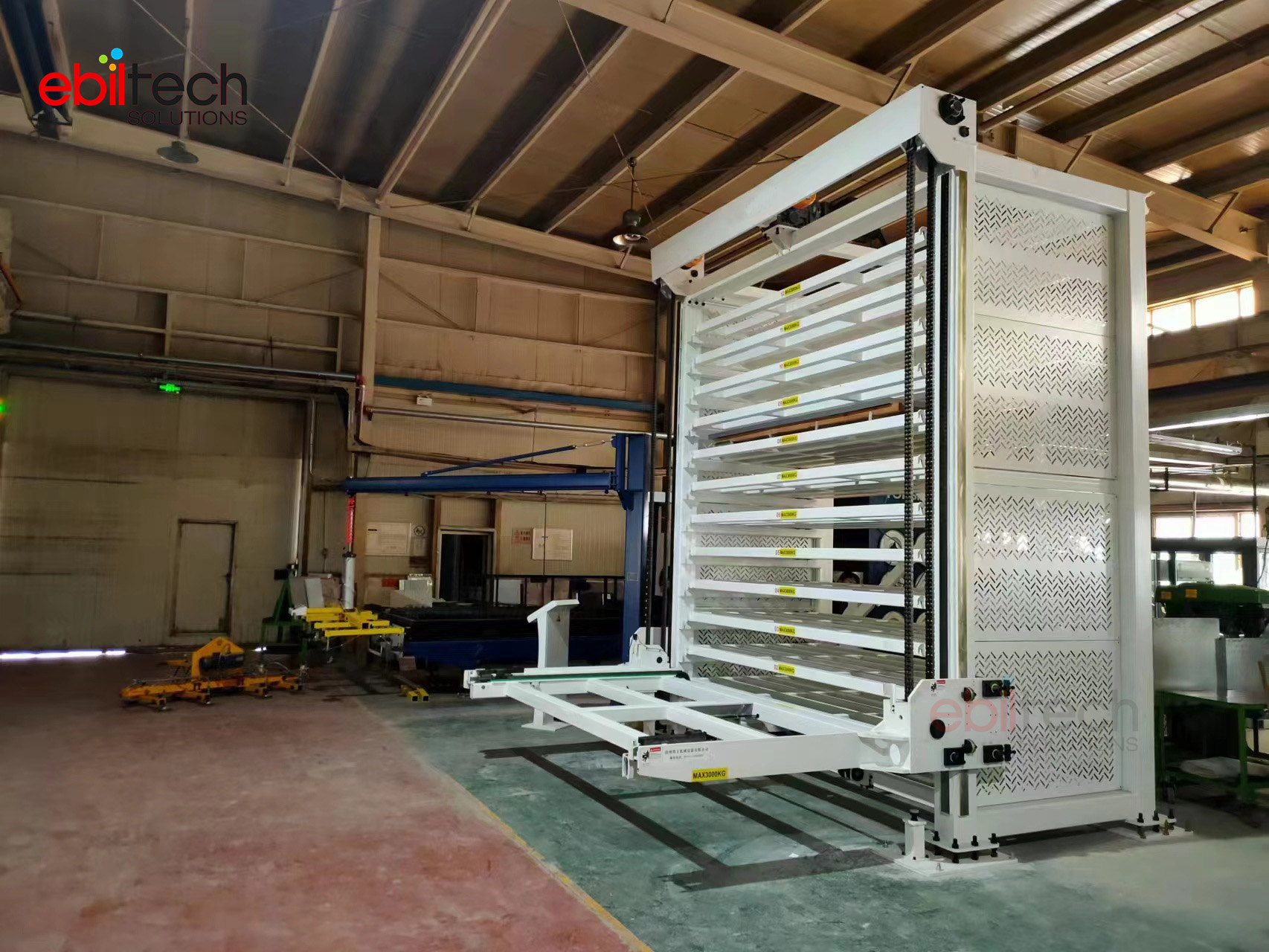

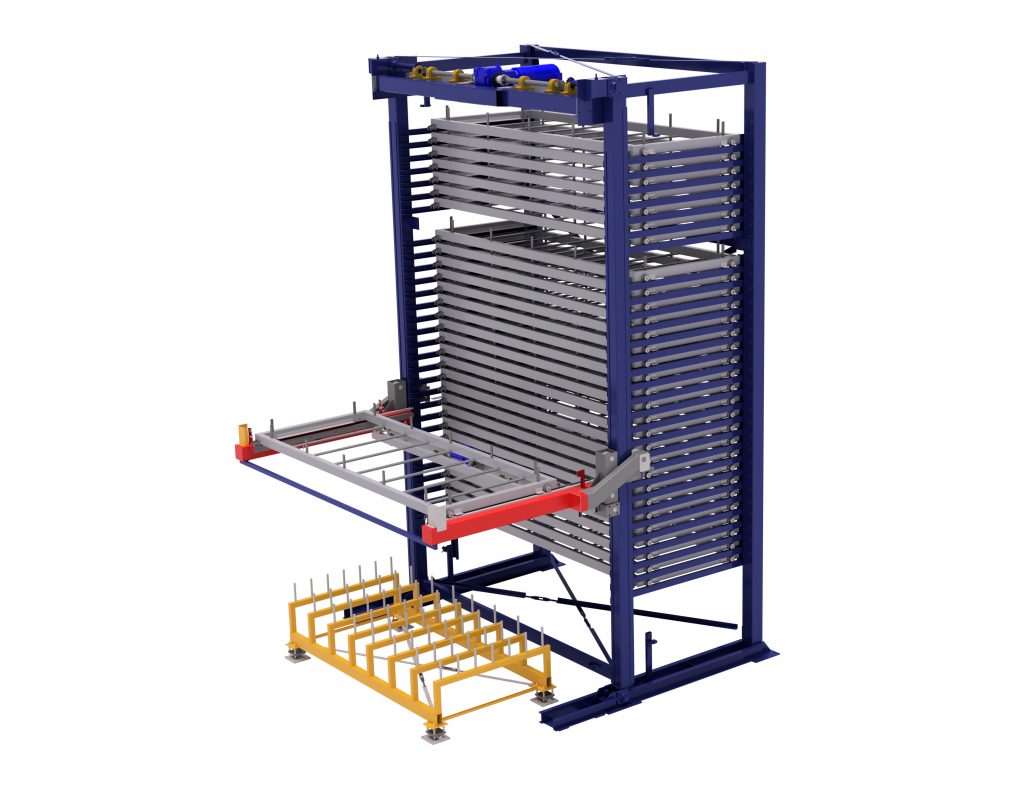

The extractor, which is part of the lifting manipulator, moves the handling unit horizontally from/to the storage position in the tower, while the lifting manipulator moves the unit vertically from/to the transfer position. The design of the (mobile) dispensing table at the transfer point provides a "lift" of the material on the container, allowing whole bundles of boards to be transferred using a forklift truck. The handling of individual boards is usually carried out by a suction vacuum manipulator or magnet. For multi-tower systems, the transfer point can be designed as front, rear and/or side.

Vertical System Process

Vertical automatic storage system is designed to store long bodies, sheet metal and heavy carpentry, ensuring even very high flow rates. It is usually used as a buffer tank / buffer near cutting and production machines or as an inter-operational warehouse.

The material that is typically stored consists of steel bars and profiles, pipes, heavy accessories, semi-finished products, components, molds, long material in general and metal sheets. These systems offer the advantage of dynamic storage – working in “goods-to-operator” mode – and can maximize the use of space at height, making the assortment of material available quickly and easily.

Storage Application
Detail View 1
Detail View 2
Operation View
Component 1
Component 2
Component 3
System View 1
System View 2
System View 3
Storage 1
Storage 2
Storage 3
Structure 1
Structure 2
Structure 3
Spec 1
Spec 2
Spec 3
Spec 4
Spec 5
Spec 6
Spec 7
Spec 8
Spec 9
Spec 10
Spec 11
Spec 12
? Frequently Asked Questions
1. Are you a professional manufacturer?
Yes, we are a professional and leading manufacturer with nearly 20 years of experience. We produce and export high-quality pallet racking, multi-shuttle systems, and radio shuttle racking with a high reputation globally.
2. What technical advantages do you offer?
We have more than 40 mechanical, electrical, and software engineers. We prioritize innovation and R&D, cooperating with well-known research institutes. We also develop our own WMS and WCS systems and hold more than 60 national patents.
3. What is the typical lead time for manufacturing?
For normal orders, we promise to produce within 20-30 days. As a direct manufacturer, we ensure delivery times according to the formal contract.
4. Do you provide installation and debugging services?
Yes, we have installation teams with rich overseas experience. We send engineers to the site for debugging and training. For racking systems, we can provide our own teams or appoint engineers to guide the operation.
5. What is the Minimum Order Quantity (MOQ)?
Normally the MOQ is one 20ft container, but larger quantities come with more competitive pricing.
6. What are your accepted payment terms?
We accept T/T (Telegraphic Transfer) or LC (Letter of Credit).
