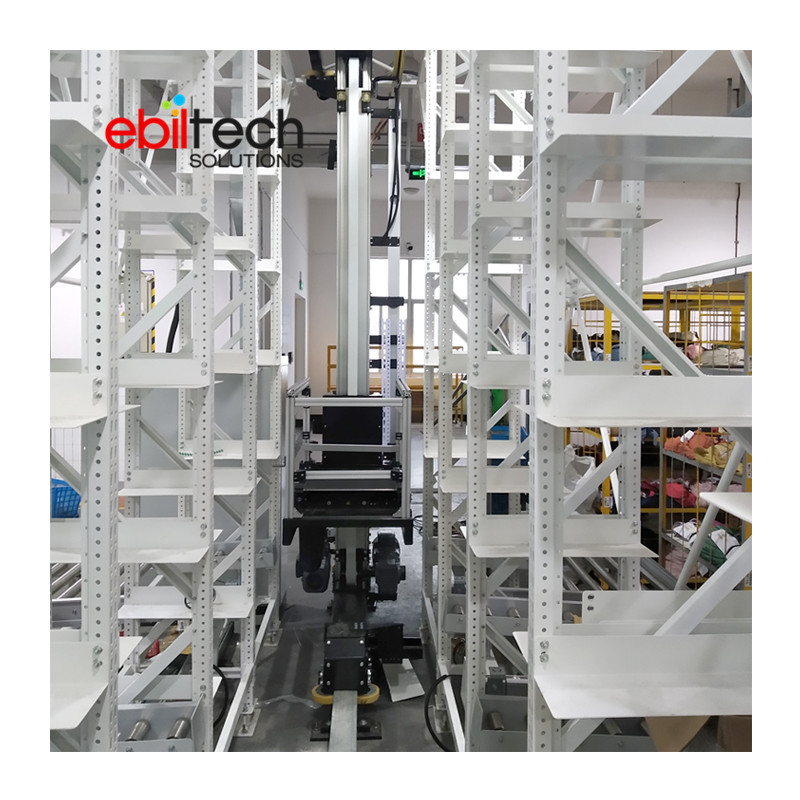

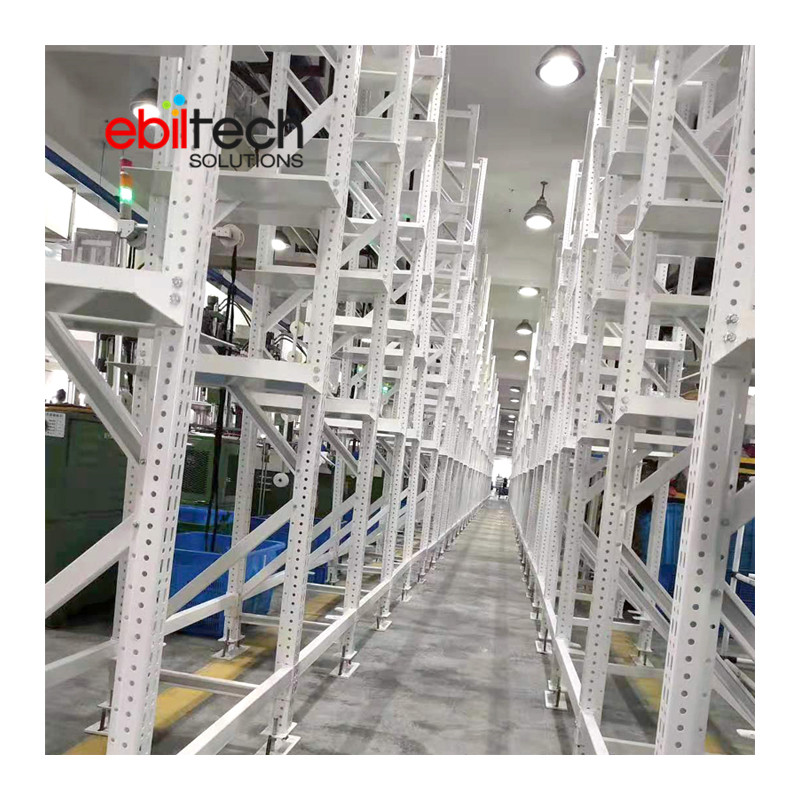

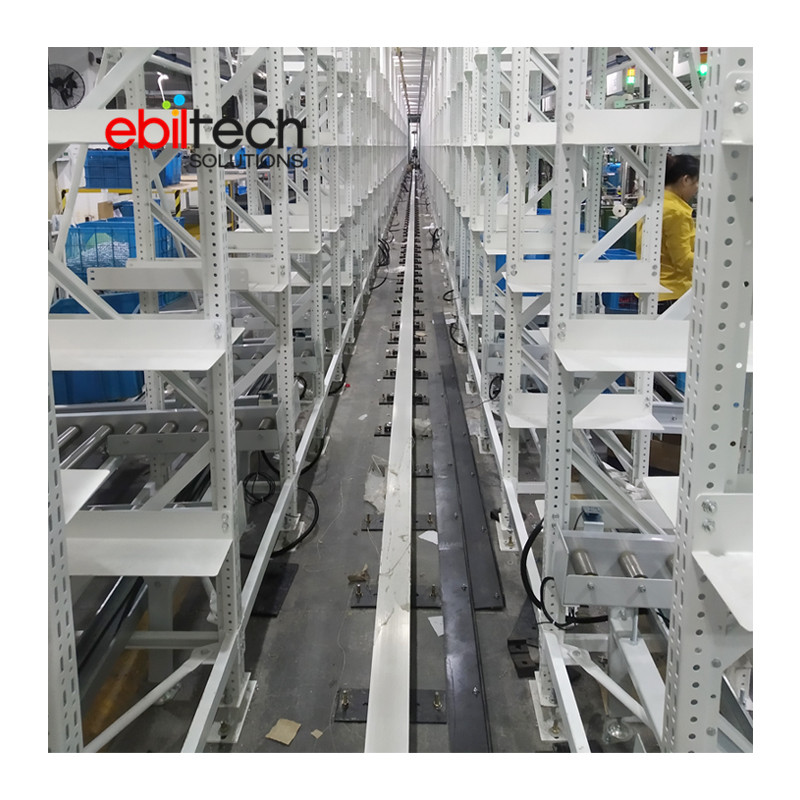

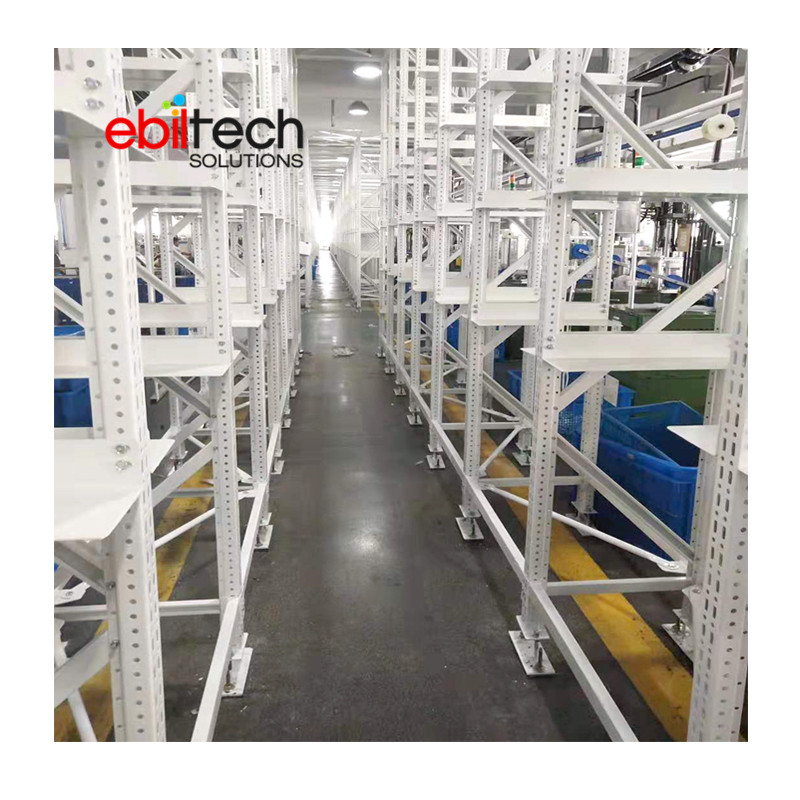

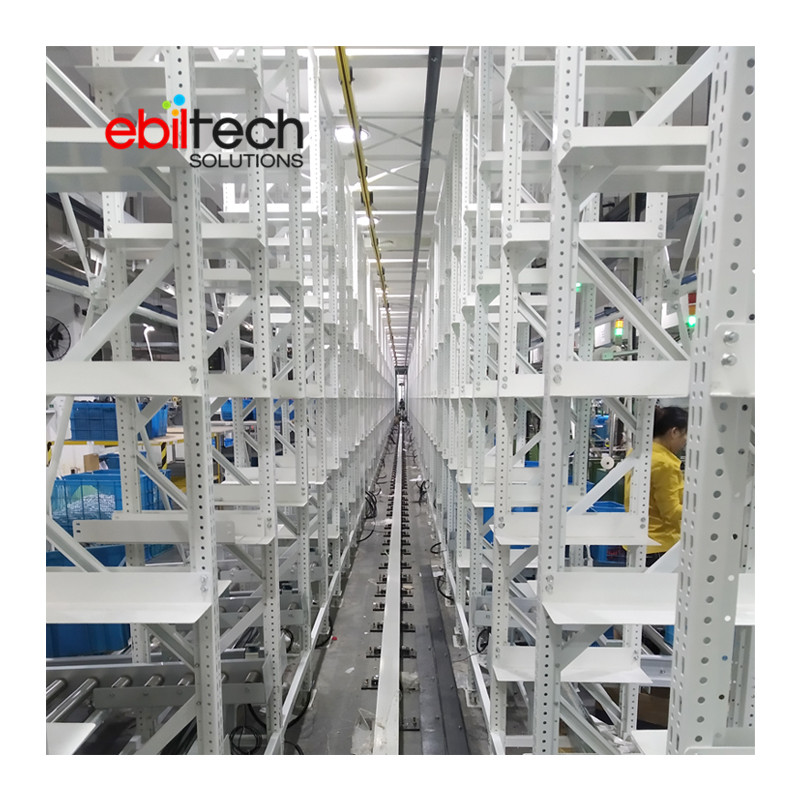

Automated Storage and Retrieval Racking System Miniload Asrs Storage Racking

Product Description

Warehouse Racking System Banner
Warehouse Automation Solutions Banner

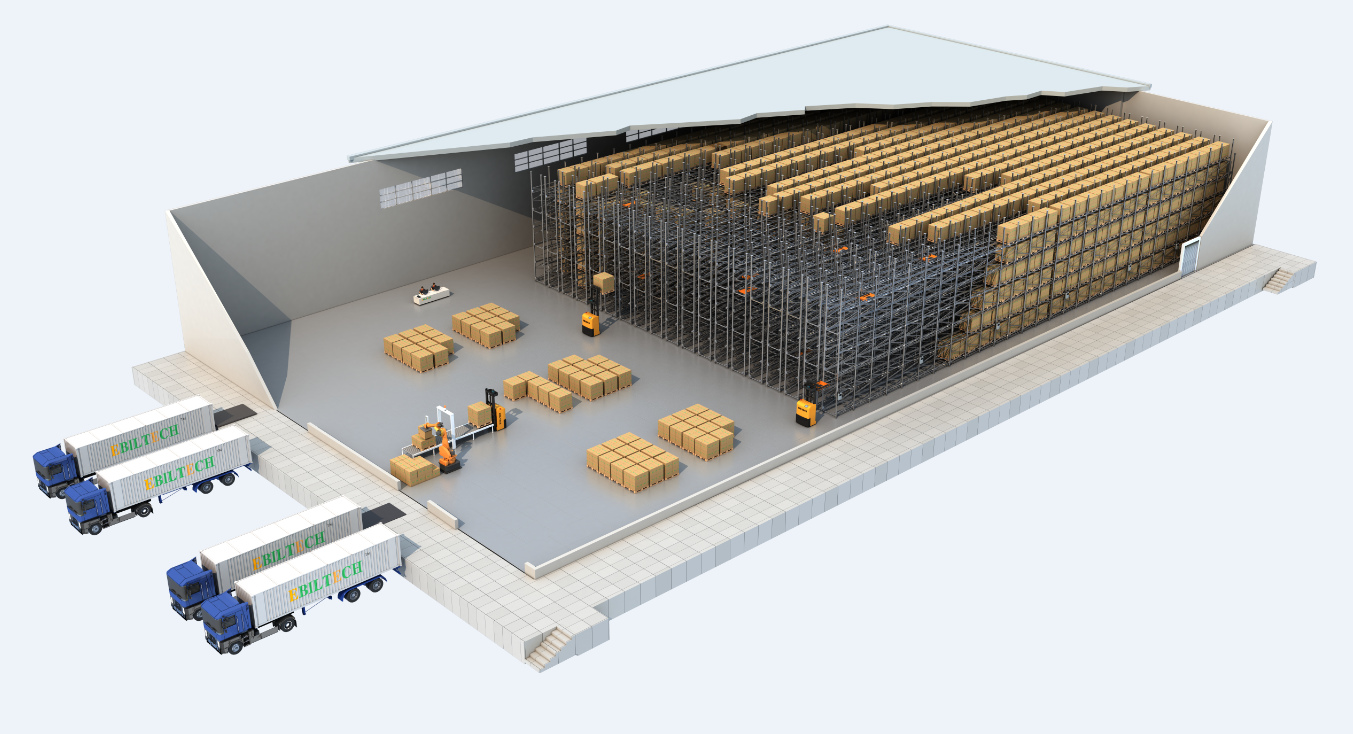

Radio shuttle racking Solution
Radio shuttle racking Solution
  • Increased volume ratio
  • Higher warehouse-in/out efficiency than manual forklift
  • Manual remote control, realizing semi-automatic warehouse in/out
  • Out-of-stock mode: First in first out / first in last out
  • Pallet size: L1200 x W1000 x H1150; Weight: 1000kg/pallet
  • Cargo space: 36 rows x 19 columns x 6 levels
  • Total storage: 4104 pallets
  • Floor area of rack: 47m L x 23m W x 9m H
  • Workshop floor area: 60m L x 26m W x 11m H
Stacker Crane + Pallet Runner System
Stacker Crane + Pallet Runner System
  • Pallet size: L1200 x W1200 x H1000; Weight: 1000kg/pallet
  • Cargo space: 22 rows x 31 columns x 9 levels
  • Total storage: 6138 pallets
  • Floor area of rack: 43.5m L x 30m W x 13m H
  • Workshop floor area: 58.5m L x 38m W x 14m H

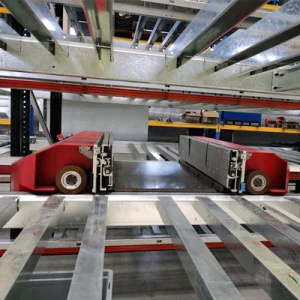

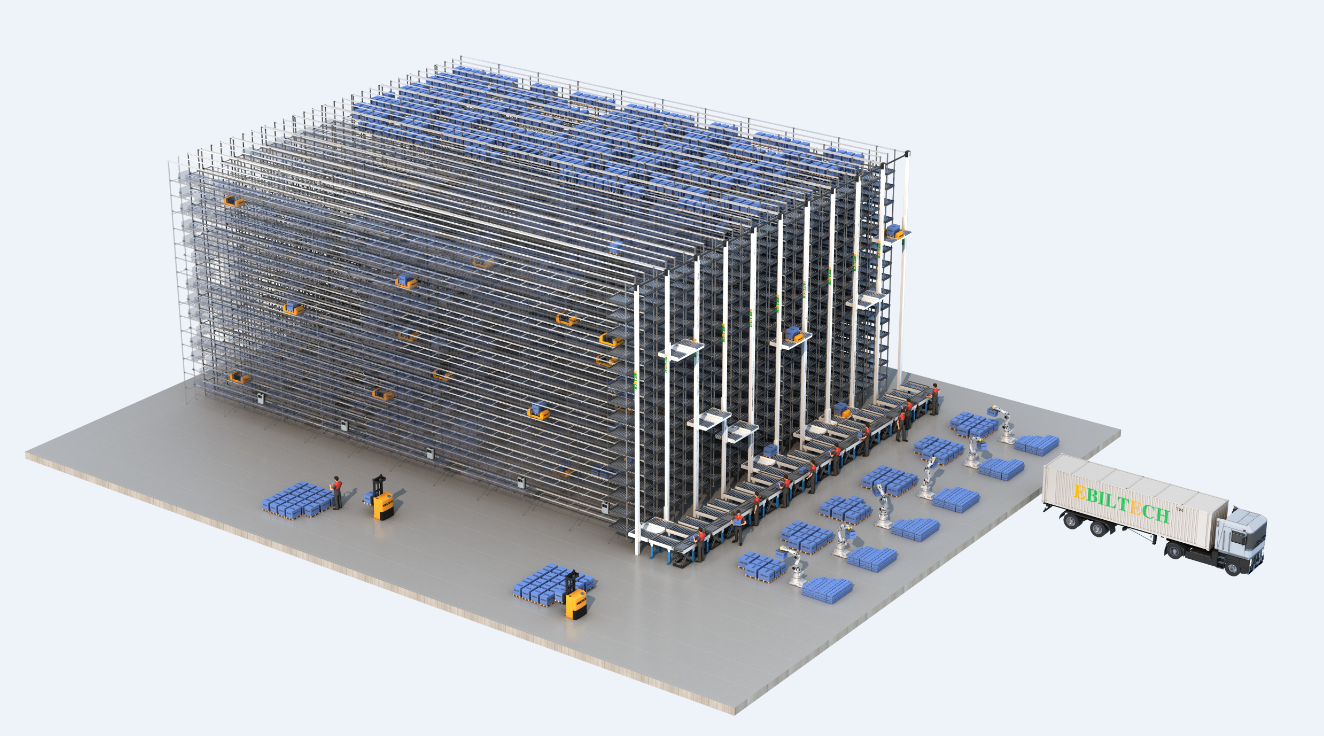

Multi shuttle System Solution
Multi shuttle System Solution
  • Box size: L600 x W400 x H280; Weight: 35kg/box
  • Cargo space: 29 rows x 19 columns x 15 levels
  • Total Storage: 16530 boxes
  • Floor area of rack: 30m L x 14m W x 10m H
  • Workshop floor area: 40m L x 26m W x 12m H
Four-way Shuttle system solution
Four-way Shuttle system solution
  • Line side library of smart factory workshop
  • Frozen/fresh food warehouse
  • Logistics transition center
  • Unmanned dark warehouse

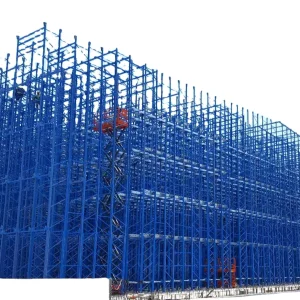

Staker Crane System
Staker Crane System
  • Pallet size: L1200 x W1200 x H1200; Weight: 1000kg/pallet
  • Cargo space: 27 rows x 20 columns x 12 levels
  • Total storage: 6480 pallets
  • Floor area of rack: 43m L x 45m W x 19m H
  • Workshop floor area: 65m L x 55m W x 20m H
Primary-secondary Shuttle carrier solution
Primary-secondary Shuttle carrier solution
  • Pallet size: L1200 x W1200 x H1000; Weight: 1000kg/pallet
  • Cargo space: 22 rows x 31 columns x 9 levels
  • Total storage: 6138 pallets
  • Floor area of rack: 43.5m L x 30m W x 13m H
  • Workshop floor area: 58.5m L x 38m W x 14m H.
Warehouse Management System Flow Diagram
Warehouse Control System WCS
Warehouse Control System (WCS)

The Warehouse Control System (WCS) serves as a bridge between the Warehouse Management System (WMS) and a broad range of material handling equipment such as conveyor systems, automated storage and retrieval systems, carousels, sorters, palletizers and so on. Acting as a "hub", the WCS is responsible for keeping everything running smoothly and maximizing the efficiency of material handling systems and subsystems.

Automated Manufacturing Factory
Frequently Asked Questions
Q1: Are you a distributor or a manufacturer?

We are a professional and leading manufacturer for nearly 20 years. We produce and export high-quality pallet racking, multi-shuttle systems, radio shuttle racking, and ASRS, which enjoy a very high reputation among our customers. Our annual production capacity is 100,000 tons of rack components and 1,000 units of shuttle cars.

Q2: What makes your product technology and R&D unique?

We have more than 40 mechanical, electrical, and software engineers. We always attach great importance to product innovation and R&D. We not only have our own research and development team, but also cooperate with domestic well-known research institutes to continuously enhance the technical strength of our enterprise. We independently research and develop WMS systems and WCS systems, holding more than 60 national patents.

Q3: What are your service response and production times?

For a quick, no-hassle quote, just contact us. We promise to reply with a price within 24 hours - sometimes even within the hour. If you need advice, just contact our export office, and we will answer your questions immediately. For normal orders, we promise to produce within 20-30 days. As a manufacturer, we can ensure the delivery time according to the formal contract.

Q4: What are your installation and debugging services?

We have installation teams with rich overseas experience. For radio shuttle cars, we will send engineers to the site for debugging and training. For racking systems, we can install them with our own teams or appoint engineers to guide the operation. We have successfully completed many projects in Southeast Asia, America, and Europe.

Q5: What is the Minimum Order Quantity (MOQ) that can be ordered?

Normally, the MOQ is one 20ft container, but larger quantities come with better pricing.

Q6: What are the payment options?

We accept T/T or L/C.
