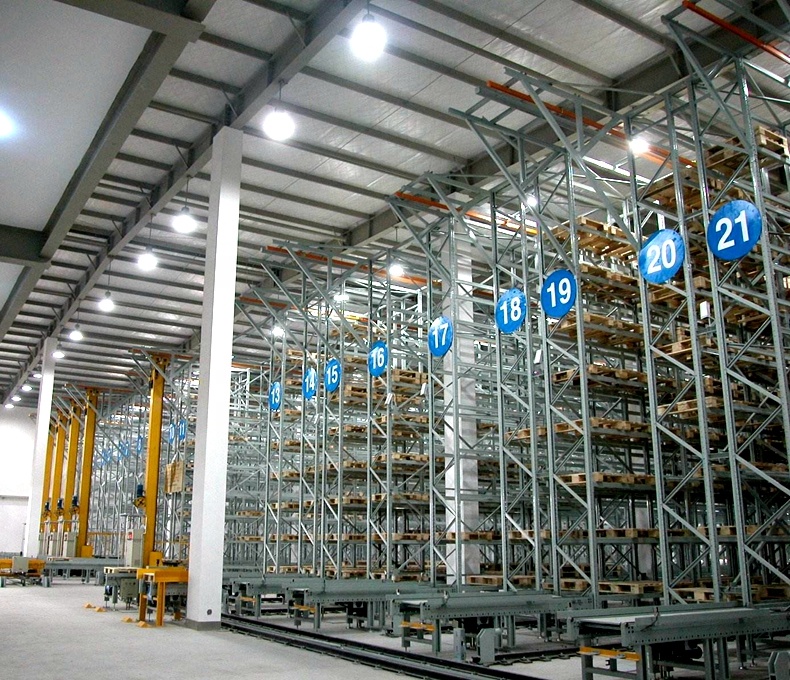

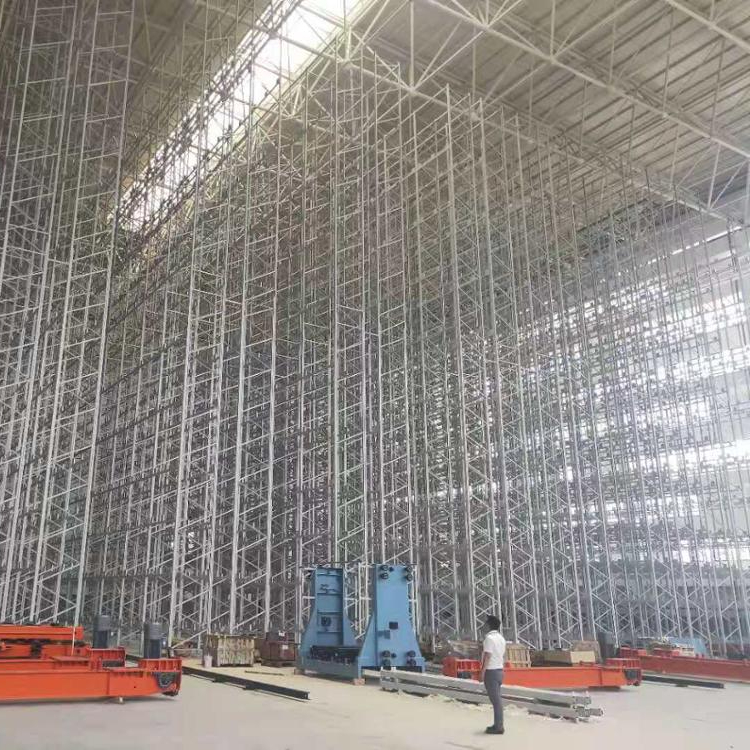

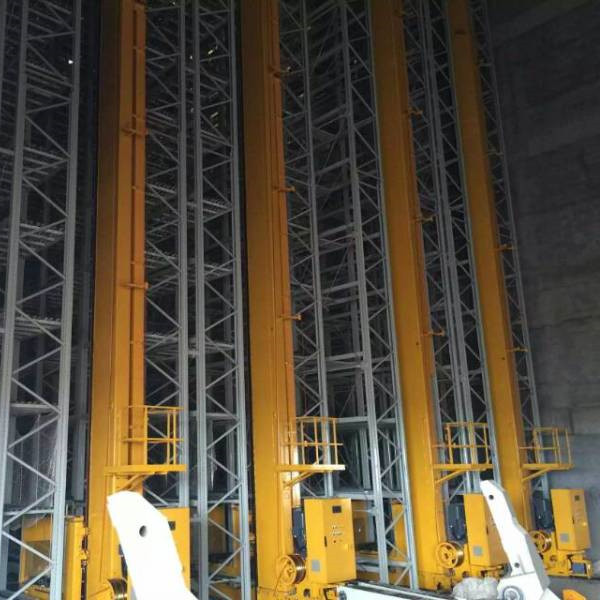

Unit Load automated warehouses maximize available space in existing structures and minimize storage space by up to 40 percent as compared to traditional storage solutions. Stacker cranes designed to work in narrow aisles nearly 100 feet off the ground, provide high density storage and automated operation.

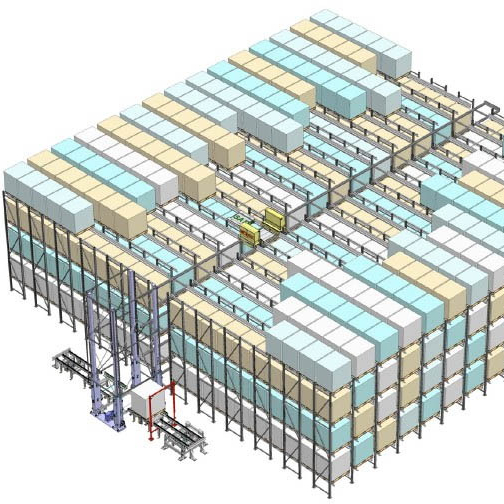

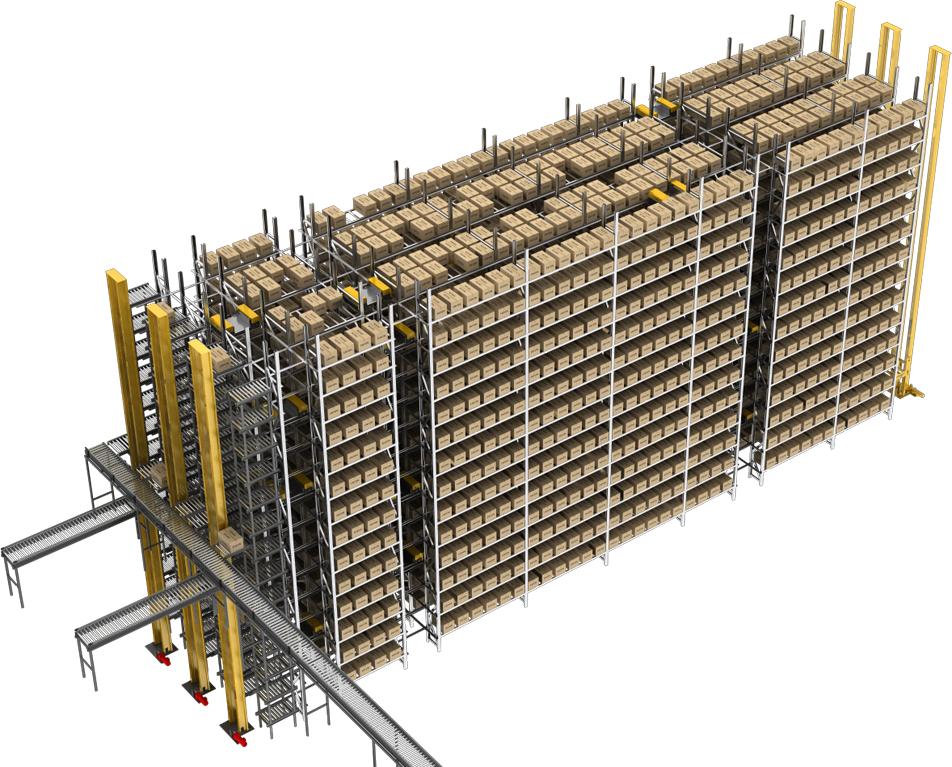

The Unit Load AS/RS is designed to provide versatility and control for any warehouse design. Fully compatible with any size pallet, the unit load racks can be single-depth or double-depth to maximize capacity. Customize the system for the application and storage requirements of each project.
Pallet size: L1200XW1200XH1000; weight: 1000kg/pallet
Cargo space: 22 rows x 31 columns x 9 levels
Total storage: 6138 pallets
Floor area of rack: 43.5m long X 30m wide x 13m high
Workshop floor area: 58.5m long x 38m wide x 14m high.
Pallet size: L1200XW1200XH1200; weight: 1000kg/pallet
Cargo space: 27 rows x 20 columns x 12 levels
Total storage: 6480 pallets
Floor area of rack: 43m long X 45m wide x 19m high
Workshop floor area: 65m long x 55m wide x 20m high
The Warehouse Control System (WCS) serves as a bridge between the Warehouse Management System (WMS) and a broad range of material handling equipment such as conveyor systems, automated storage and retrieval systems, carousels, and sorters.
