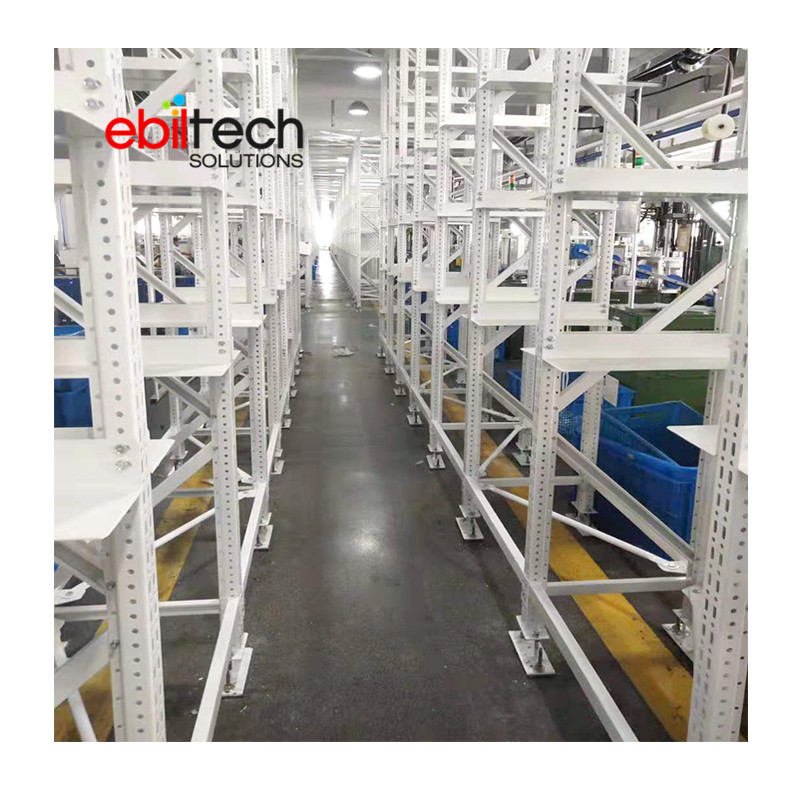

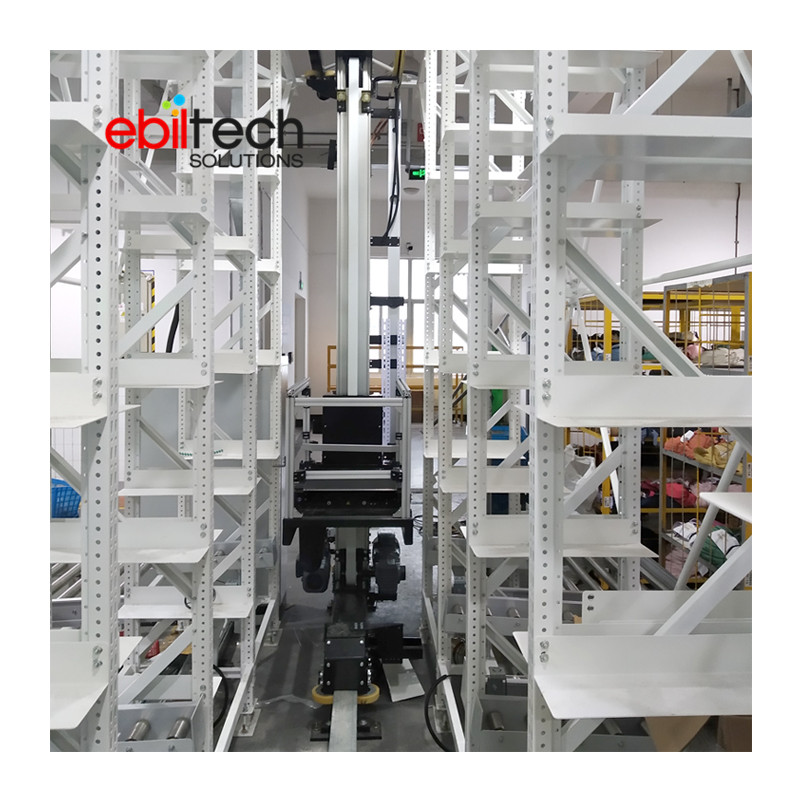

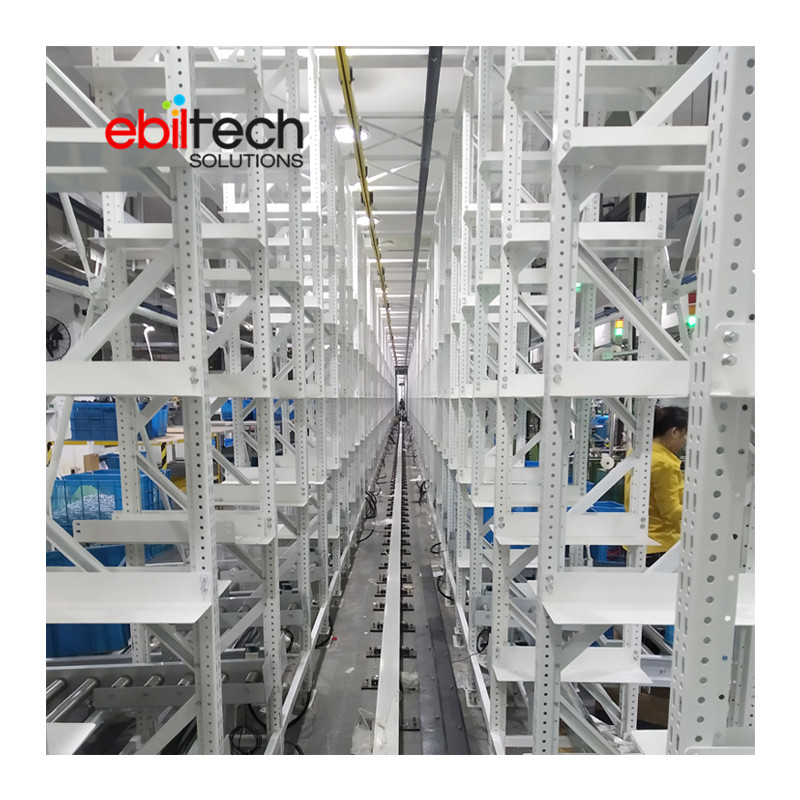

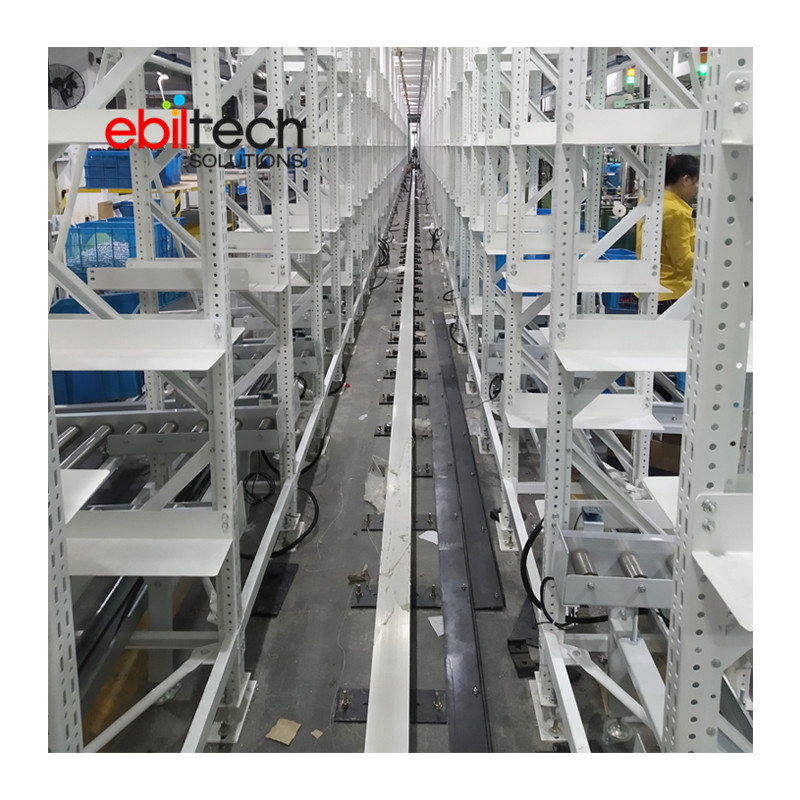

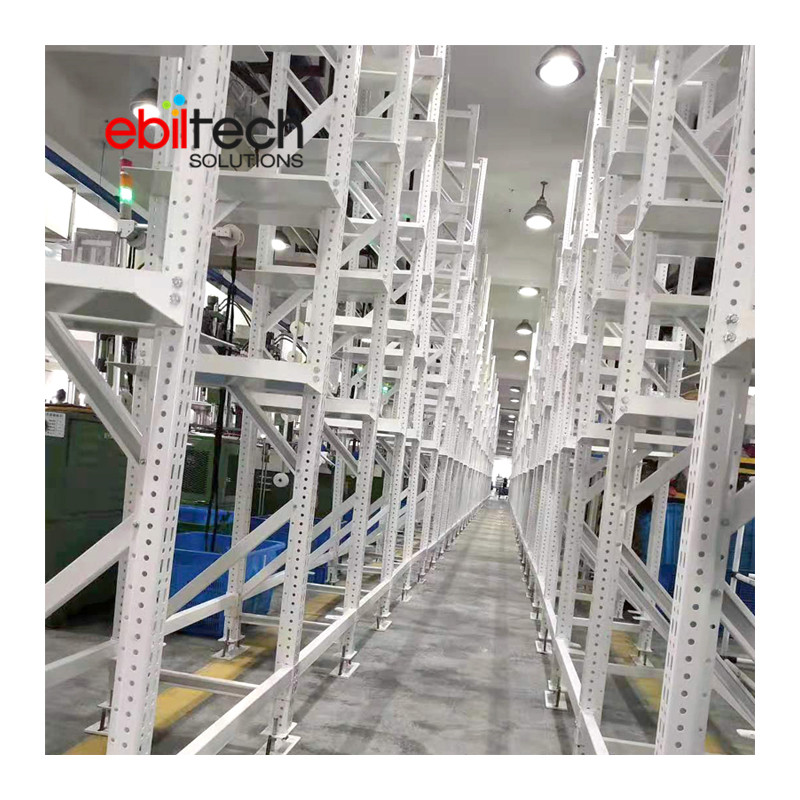

Automated Storage Miniloaders Stacker Crane for Asrs Warehouse

Product Description

Automated Racking System
Warehouse Blueprint Design
Radio shuttle racking Solution

Radio shuttle racking Solution

  • Increased volume ratio
  • Higher warehouse-in/out efficiency than manual forklift
  • Manual remote control, realizing semi-automatic warehouse in/out
  • Out-of-stock mode: First in first out/first in last out
  • Pallet size: L1200XW1000XH1150; weight: 1000kg/pallet
  • Cargo space: 36 rows x 19 columns x 6 levels
  • Total storage: 4104 pallets
  • Floor area of rack: 47m long X 23m wide x 9m high
  • Workshop floor area: 60m long x 26m x 11m high
Stacker Crane + Pallet Runner System

Stacker Crane + Pallet Runner System

  • Pallet size: L1200XW1200XH1000; weight: 1000kg/pallet
  • Cargo space: 22 rows x 31 columns x 9 levels
  • Total storage: 6138 pallets
  • Floor area of rack: 43.5m long X 30m wide x 13m high
  • Workshop floor area: 58.5m long x 38m wide x 14m high
Multi shuttle System Solution

Multi shuttle System Solution

  • Box size: L600XW400XH280; weight: 35kg/box
  • Cargo space: 29 rows x 19 columns x 15 levels
  • Total Storage: 16530 boxes
  • Floor area of rack: 30m long X 14m wide x 10m high
  • Workshop floor area: 40m long x 26m wide x 12m high
Four-way Shuttle system solution

Four-way Shuttle system solution

  • Line side library of smart factory workshop
  • Frozen/fresh food warehouse
  • Logistics transition center
  • Unmanned dark warehouse
Stacker Crane System

Stacker Crane System

  • Pallet size: L1200XW1200XH1200
  • Weight: 1000kg/pallet
  • Cargo space: 27 rows x 20 columns x 12 levels
  • Total storage: 6480 pallets
  • Floor area of rack: 43m long X 45m wide x 19m high
  • Workshop floor area: 65m long x 55m wide x 20m high
Primary-secondary Shuttle carrier solution

Primary-secondary Shuttle carrier solution

  • Pallet size: L1200XW1200XH1000; weight: 1000kg/pallet
  • Cargo space: 22 rows x 31 columns x 9 levels
  • Total storage: 6138 pallets
  • Floor area of rack: 43.5m long X 30m wide x 13m high
  • Workshop floor area: 58.5m long x 38m wide x 14m high
WCS System Architecture
Warehouse Control System Layout

Warehouse Control System (WCS)

The Warehouse Control System (WCS) serves as a bridge between the Warehouse Management System (WMS) and a broad range of material handling equipment such as conveyor systems, automated storage and retrieval systems, carousels, sorters, palletizers and so on. Acting as a "hub", the WCS is responsible for keeping everything running smoothly and maximizing the efficiency of material handling systems and subsystems.

Quality Assurance Title
Quality Assurance Certificates
Production Process Title
Production Process Details
Product Packaging Title
Packaging Details
Project Cases Title
Project Case Details
Customer Feedback Title
Feedback Details
Exhibition Title
Exhibition Details
Company Profile Title
Company Map and Details
FAQ Title Banner
1. Q: Are you a distributor or manufacturer?
A: We are a professional and leading manufacturer for nearly 20 years. We produce and export high-quality pallet racking, multi shuttle systems, radio shuttle racking, and ASRS, which enjoy a very high reputation among our customers. Our annual production capacity is 100,000 tons of rack components and 1,000 units of shuttle cars.
2. Q: What makes you different from others?
A:
1) We have more than 40 mechanical, electrical, and software engineers. We always attach great importance to product innovation and R&D. We not only have our own research and development team but also cooperate with well-known domestic research institutes, so as to continuously enhance the technical strength of the enterprise. We have independently developed our WMS system and WCS system, and we hold more than 60 national patents.
2) Our Excellent Service: For a quick, no-hassle quote, just send an email to us. We promise to reply with a price within 24 hours - sometimes even within the hour. If you need advice, just contact our export office, and we will answer your questions immediately.
3) Our quick manufacturing time: For normal orders, we promise to produce within 20-30 days. As a manufacturer, we can ensure the delivery time according to the formal contract.
3. Q: What installation and debugging services do you provide?
A: We have installation teams with rich overseas experience. For radio shuttle cars, we will send engineers to the site for debugging and training. For racking systems, we can install using our own teams or appoint engineers to guide the operation. We have successfully completed many projects in Southeast Asia, America, and Europe.
4. Q: What is the Minimum Order Quantity (MOQ) that can be ordered?
A: Normally, the MOQ is one 20ft container. However, larger quantities will qualify for better pricing structures.
5. Q: What are the payment terms?
A: We accept T/T or L/C.
6. Q: What types of automated shuttle solutions do you offer?
A: We offer a comprehensive range of automated systems including Radio Shuttle Racking Solutions, Stacker Crane + Pallet Runner Systems, Multi Shuttle System Solutions, Four-way Shuttle System Solutions, Stacker Crane Systems, and Primary-secondary Shuttle Carrier Solutions.
