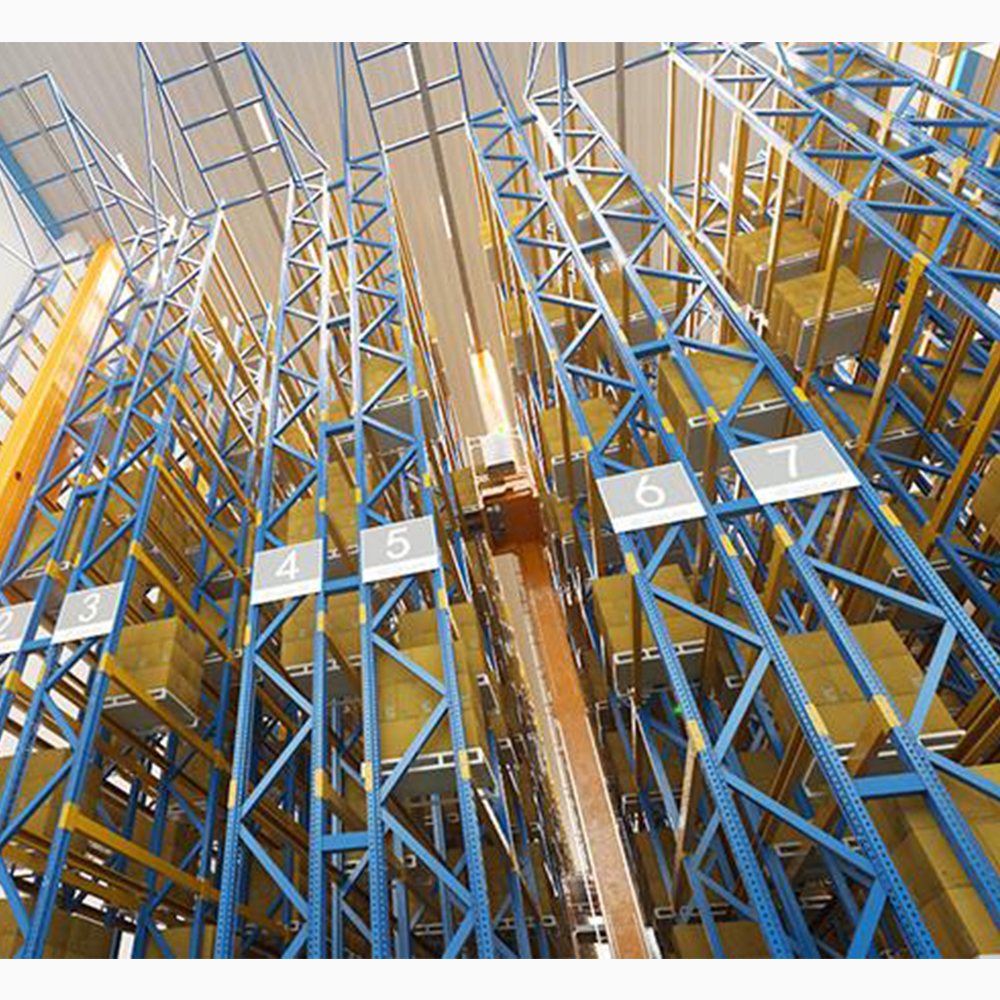

Automatic Storage and Retrieval Pallet Racking System (ASRS)

1 / 5

Automatic Storage and Retrieval Pallet Racking System (ASRS)

Send Inquiry

Product Description

📦 Radio Shuttle Racking Solution

Increased volume ratio
Higher warehouse-in/out efficiency than manual forklift
Manual remote control, realizing semi-automatic warehouse in/out
Out-of-stock mode: First in first out / First in last out
Pallet size: L1200 X W1000 X H1150; Weight: 1000kg/pallet
Cargo space: 36 rows x 19 columns x 6 levels
Total storage: 4104 pallets

🏗️ Stacker Crane + Pallet Runner System

Pallet size: L1200 X W1200 X H1000; Weight: 1000kg/pallet
Cargo space: 22 rows x 31 columns x 9 levels
Total storage: 6138 pallets
Rack Floor Area: 43.5m L x 30m W x 13m H
Workshop Floor Area: 58.5m L x 38m W x 14m H

⚙️ Multi Shuttle System Solution

Box size: L600 X W400 X H280; Weight: 35kg/box
Cargo space: 29 rows x 19 columns x 15 levels
Total Storage: 16530 boxes
Rack Floor Area: 30m L x 14m W x 10m H
Workshop Floor Area: 40m L x 26m W x 12m H

🔄 Four-way Shuttle System Solution

Ideal Applications:

Line side library of smart factory workshop
Frozen/fresh food warehouse
Logistics transition center
Unmanned dark warehouse

📊 Stacker Crane System Specifications

Pallet size: L1200 X W1200 X H1200; Weight: 1000kg/pallet
Cargo space: 27 rows x 20 columns x 12 levels
Total storage: 6480 pallets
Rack Floor Area: 43m L x 45m W x 19m H
Workshop Floor Area: 65m L x 55m W x 20m H

🔗 Primary-Secondary Shuttle Carrier Solution

Pallet size: L1200 X W1200 X H1000; Weight: 1000kg/pallet
Cargo space: 22 rows x 31 columns x 9 levels
Total storage: 6138 pallets
Rack Floor Area: 43.5m L x 30m W x 13m H
Workshop Floor Area: 58.5m L x 38m W x 14m H

🖥️ Warehouse Control System (WCS)

The Warehouse Control System (WCS) serves as a bridge between the Warehouse Management System (WMS) and a broad range of material handling equipment such as conveyor systems, automated storage and retrieval systems, carousels, sorters, and palletizers.

Acting as a “hub”, the WCS is responsible for keeping everything running smoothly and maximizing the efficiency of material handling systems and subsystems.

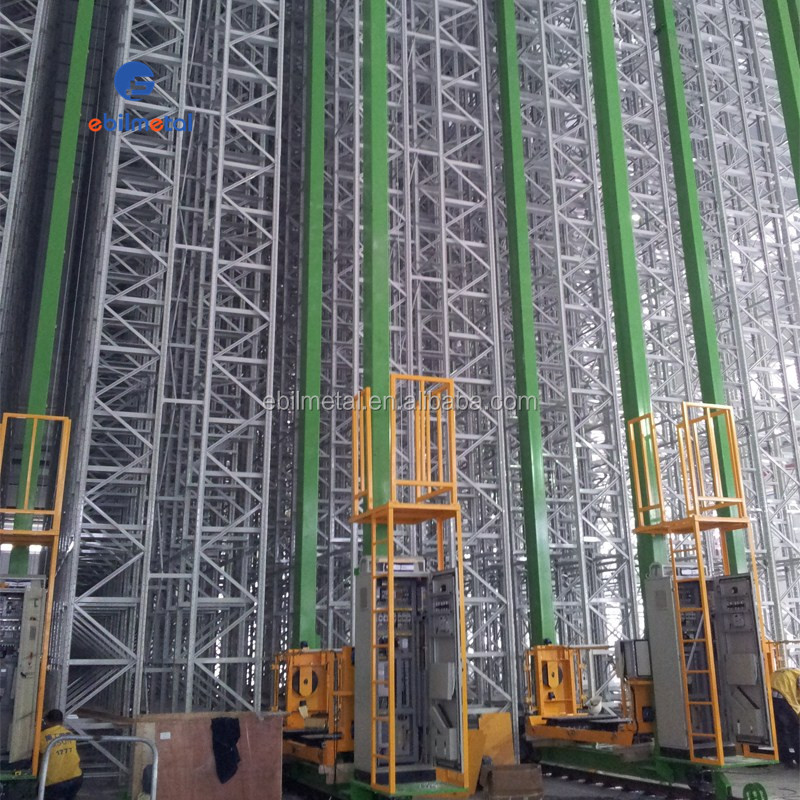

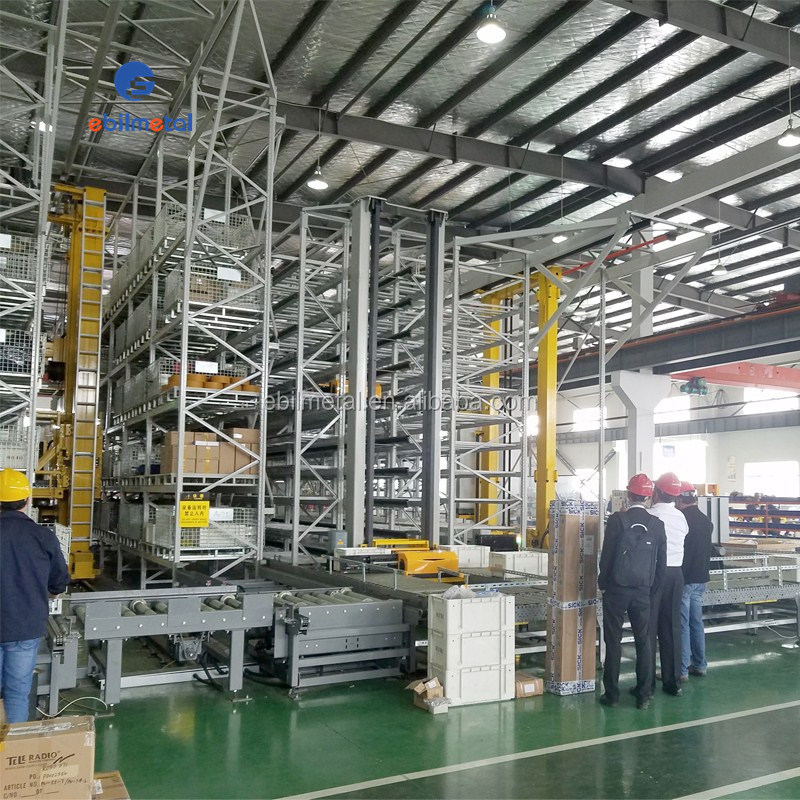

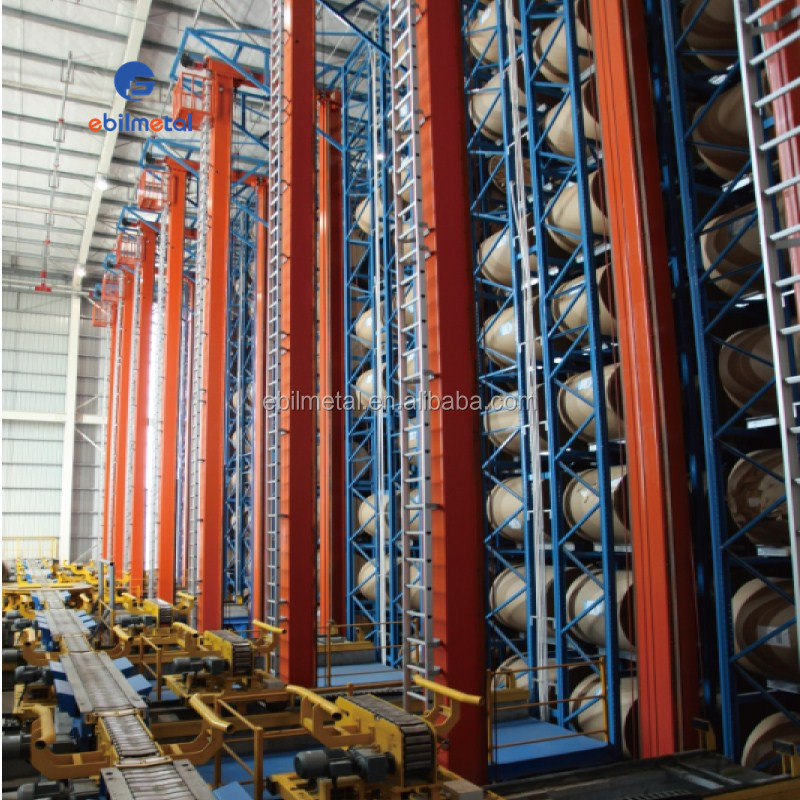

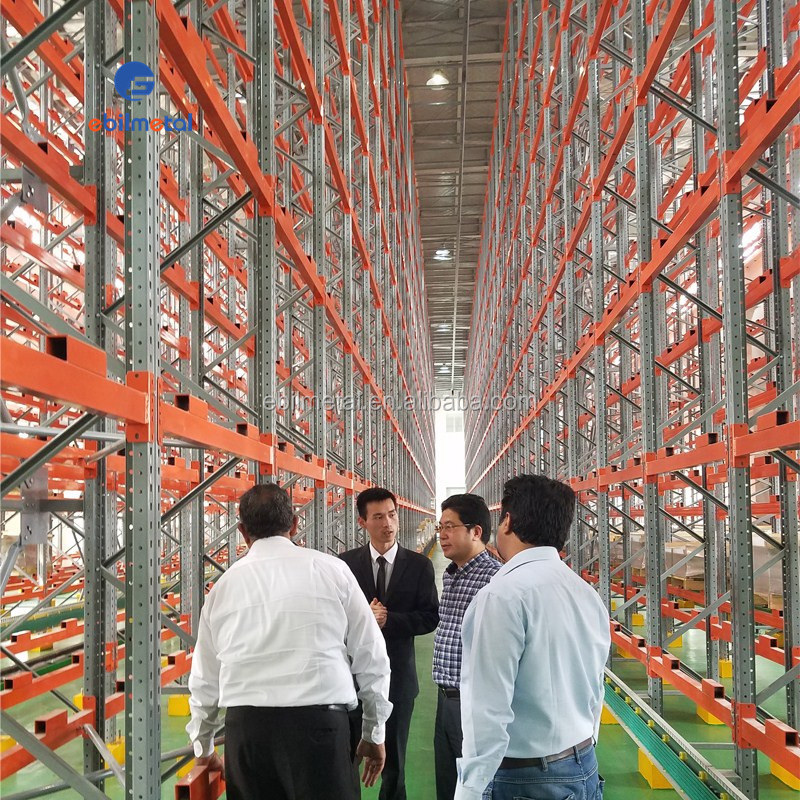

📸 Project Gallery

❓ Frequently Asked Questions

Are you a professional manufacturer of automated racking systems?

Yes, we are a professional and leading manufacturer with nearly 20 years of experience. We specialize in pallet racking, multi-shuttle systems, radio shuttle racking, and ASRS, maintaining a high reputation globally with an annual production capacity of 100,000 tons.

What unique R&D capabilities do you offer?

We employ over 40 mechanical, electrical, and software engineers focused on innovation. We have developed independent WMS and WCS systems and hold more than 60 national patents through collaboration with top research institutes.

What is the typical manufacturing lead time?

For standard orders, we promise a production time of 20-30 days. As a direct factory, we ensure strict adherence to delivery schedules outlined in formal contracts.

Do you provide installation and debugging services overseas?

Yes, we have experienced installation teams for international projects. We send engineers to sites for radio shuttle car debugging and staff training. We have successfully completed projects across Southeast Asia, America, and Europe.

What is the minimum order quantity (MOQ)?

Normally, the MOQ is one 20ft container. However, larger quantities are eligible for more competitive pricing.

What payment methods are accepted?

We primarily accept T/T (Telegraphic Transfer) or LC (Letter of Credit) for our transactions.
