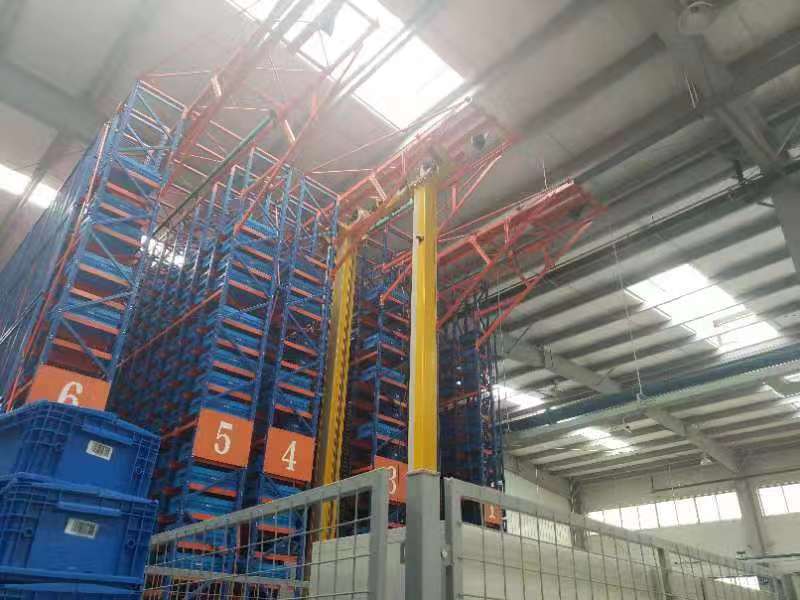

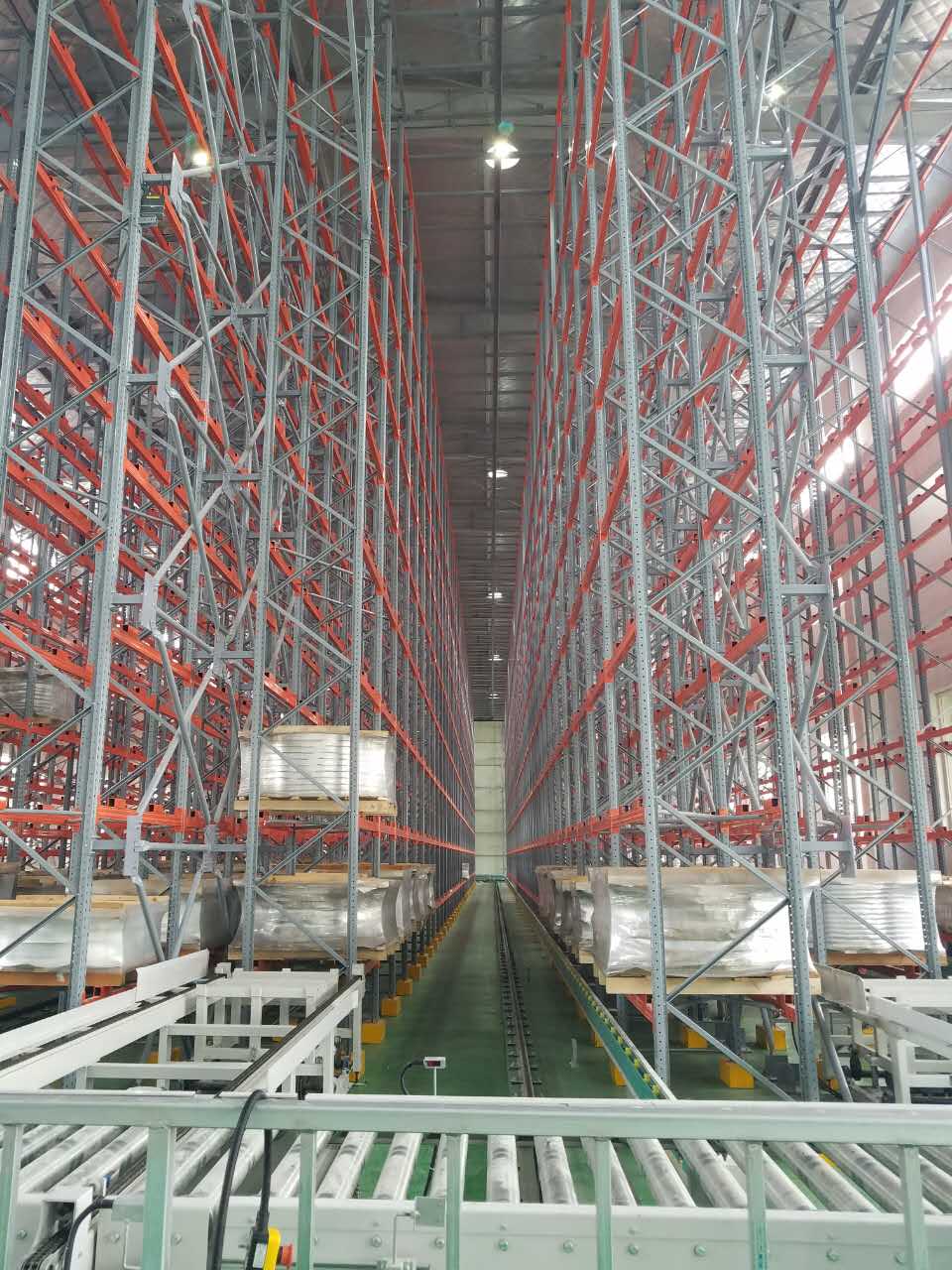

Warehouse Selective Pallet Racking for Automated (AS/RS)systems

Product Description

Warehouse Solution Banner Process Diagram
Radio shuttle racking
Radio Shuttle Racking Solution
1. Increased volume ratio;
2. Higher warehouse-in/out efficiency than manual forklift;
3. Manual remote control, realizing semi-automatic warehouse in/out;
4. Out-of-stock mode: First in first out / first in last out;
Specifications:
Pallet size: L1200 X W1000 X H1150; Weight: 1000kg/pallet
Cargo space: 36 rows x 19 columns x 6 levels
Total storage: 4104 pallets
Floor area: 47m long X 23m wide x 9m high

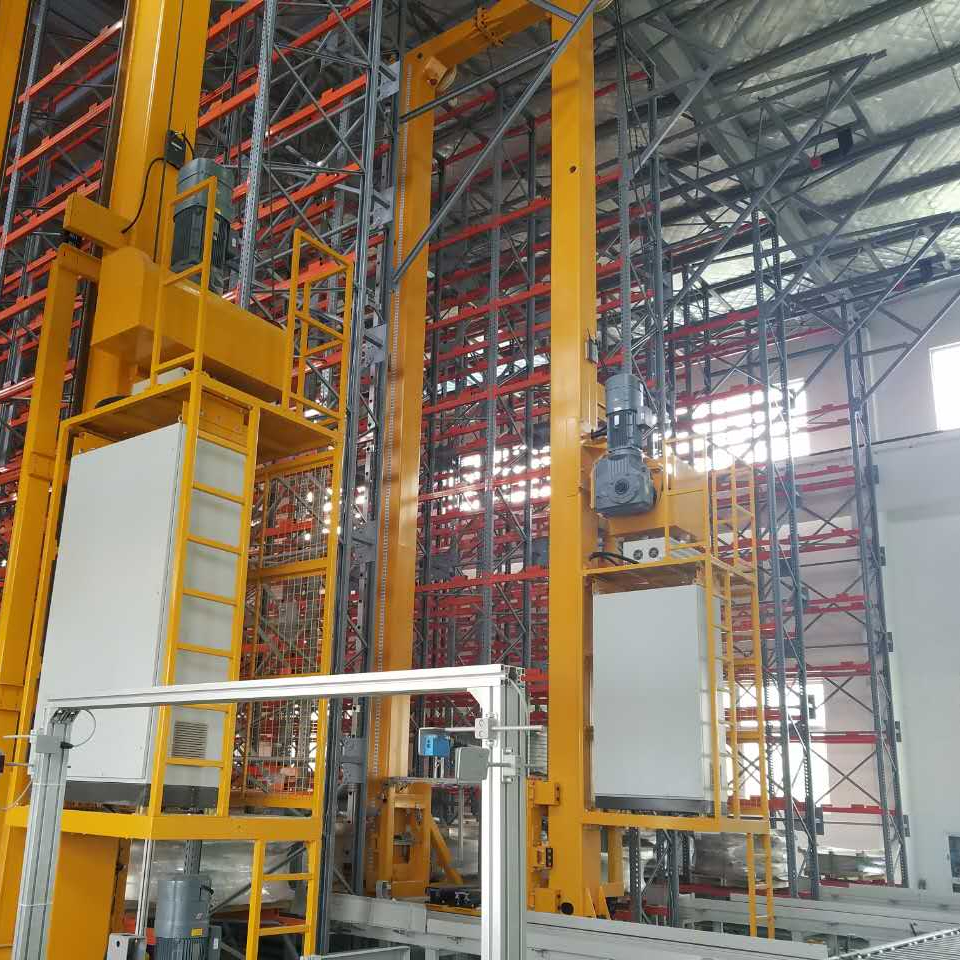

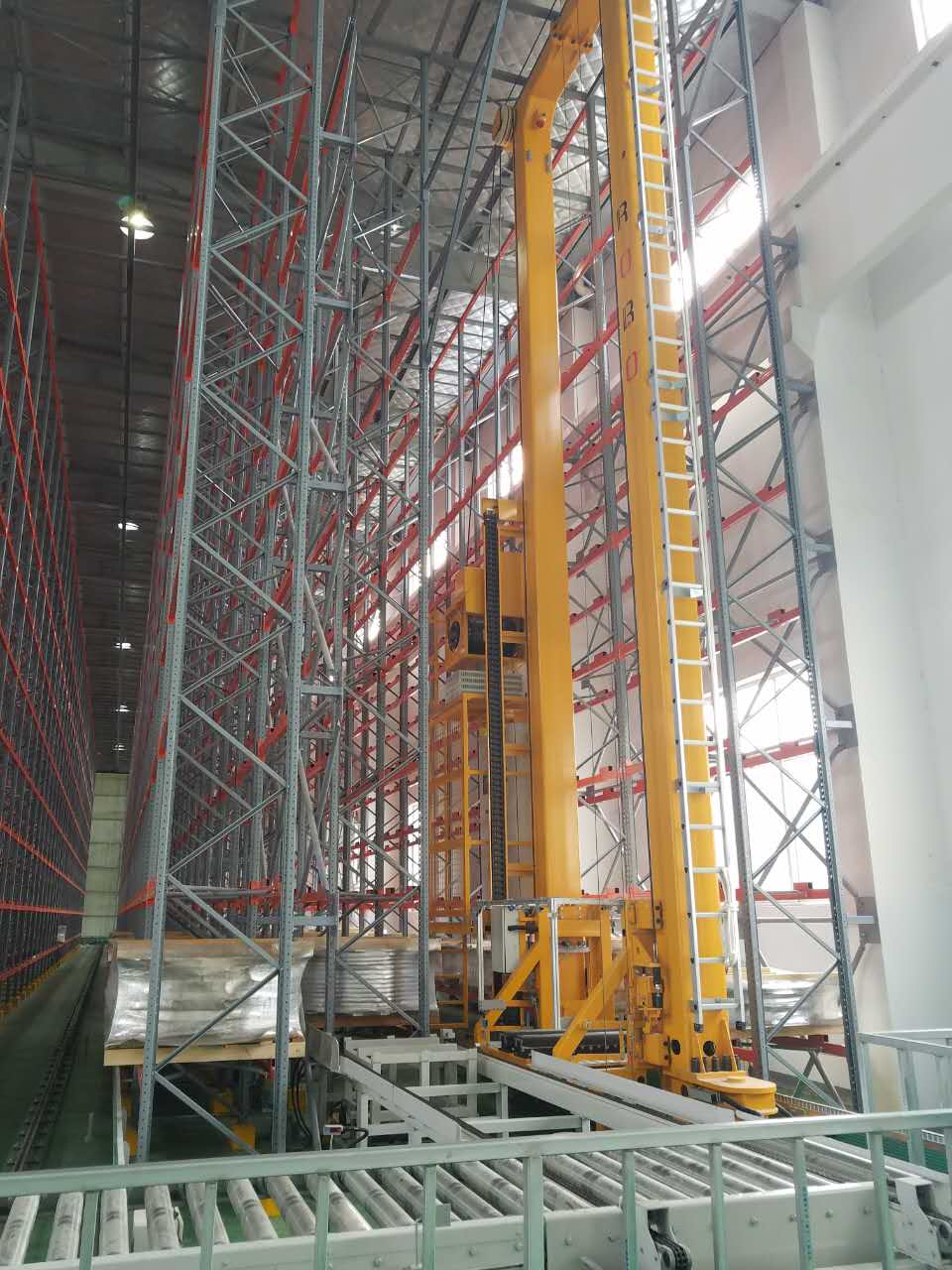

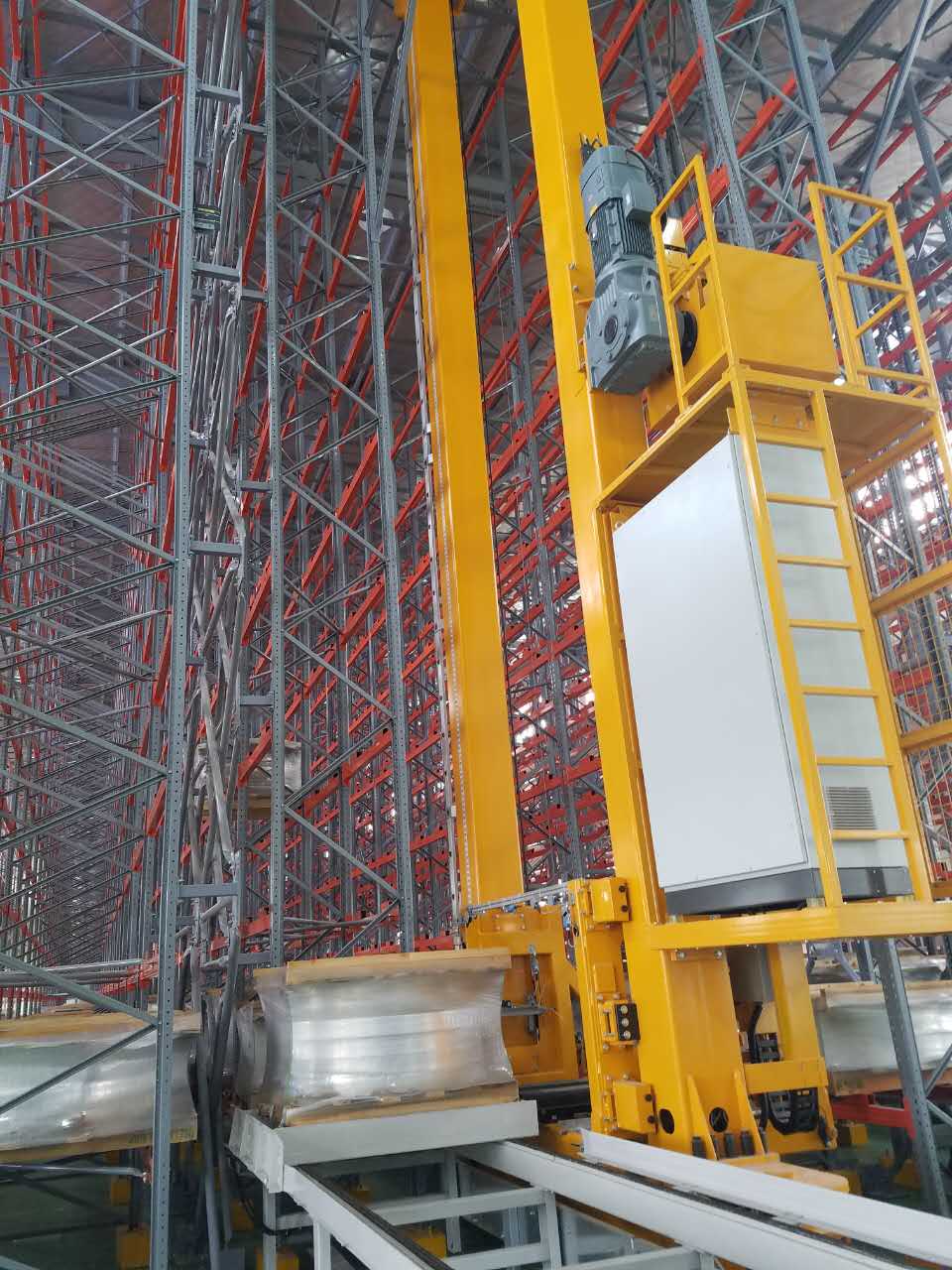

Stacker Crane System
Stacker Crane + Pallet Runner System
System Parameters:
Pallet size: L1200 X W1200 X H1000; Weight: 1000kg/pallet
Cargo space: 22 rows x 31 columns x 9 levels
Total storage: 6138 pallets
Rack area: 43.5m long X 30m wide x 13m high
Workshop area: 58.5m long x 38m wide x 14m high.
Multi shuttle System
Multi Shuttle System Solution
Technical Data:
Box size: L600 X W400 X H280; Weight: 35kg/box
Cargo space: 29 rows x 19 columns x 15 levels
Total Storage: 16530 boxes
Rack area: 30m long X 14m wide x 10m high
Workshop area: 40m long x 26m wide x 12m high.
Four-way Shuttle
Four-way Shuttle System Solution
Line side library of smart factory workshop.
Frozen/fresh food warehouse.
Logistics transition center.
Unmanned dark warehouse.
Staker Crane System
Stacker Crane System
Pallet size: L1200 X W1200 X H1200; Weight: 1000kg/pallet
Cargo space: 27 rows x 20 columns x 12 levels
Total storage: 6480 pallets
Rack area: 43m long X 45m wide x 19m high
Workshop area: 65m long x 55m wide x 200m high
Primary-secondary Shuttle
Primary-secondary Shuttle Carrier Solution
Pallet size: L1200 X W1200 X H1000; Weight: 1000kg/pallet
Cargo space: 22 rows x 31 columns x 9 levels
Total storage: 6138 pallets
Rack area: 43.5m long X 30m wide x 13m high
Workshop area: 58.5m long x 38m wide x 14m high.
System Flow
Control System
Warehouse Control System (WCS)

The Warehouse Control System (WCS) serves as a bridge between the Warehouse Management System (WMS) and a broad range of material handling equipment such as conveyor systems, automated storage and retrieval systems, carousels, sorters, palletizers and so on.

Acting as a "hub", the WCS is responsible for keeping everything running smoothly and maximizing the efficiency of material handling systems and subsystems.

Manufacturing Excellence
Manufacturing
Gallery 1 Gallery 2 Gallery 3
Gallery 4 Gallery 5 Gallery 6
Gallery 7 Gallery 8 Gallery 9
Service 1 Service 2 Service 3 Service 4 Service 5 Service 6 Service 7 Service 8 Service 9 Service 10 Service 11 Service 12 Service 13 Service 14 Service 15
Frequently Asked Questions
1. Are you a distributor or a manufacturer?

We are a professional and leading manufacturer with nearly 20 years of experience. We produce and export high-quality pallet racking, multi-shuttle systems, radio shuttle racking, and ASRS. Our annual production capacity reaches 100,000 tons of rack components and 1,000 shuttle units.

2. What makes your solutions different from others?

We employ over 40 mechanical, electrical, and software engineers focusing on R&D. We maintain our own WMS and WCS systems with over 60 national patents. Our team ensures a quick response with quotes often provided within 24 hours.

3. What is your typical manufacturing lead time?

For standard orders, we promise production within 20-30 days. As a direct manufacturer, we ensure delivery times according to the formal contract terms.

4. Do you provide installation and debugging services?

Yes, we have experienced installation teams for overseas projects. For shuttle cars, we send engineers for on-site debugging and training. For racking systems, we can provide full installation or dispatch engineers to guide your local team.

5. What is the minimum order quantity (MOQ)?

Normally, the MOQ is one 20ft container. However, larger quantities are eligible for more competitive pricing.

6. What are your accepted payment terms?

We generally accept T/T (Telegraphic Transfer) or LC (Letter of Credit).
