Digital Automatic Warehouse Rack Racking and Shelving Systems

1 / 5

Digital Automatic Warehouse Rack Racking and Shelving Systems

Send Inquiry

Product Description

Radio Shuttle Racking Solution

Increased volume ratio
Higher warehouse-in/out efficiency than manual forklift
Manual remote control, realizing semi-automatic warehouse in/out
Out-of-stock mode: First in first out / first in last out

Technical Specifications:
Pallet size: L1200 x W1000 x H1150; weight: 1000kg/pallet
Cargo space: 36 rows x 19 columns x 6 levels
Total storage: 4104 pallets
Floor area of rack: 47m long x 23m wide x 9m high
Workshop floor area: 60m long x 26m x 11m high

Stacker Crane + Pallet Runner System

Pallet size: L1200 x W1200 x H1000; weight: 1000kg/pallet
Cargo space: 22 rows x 31 columns x 9 levels
Total storage: 6138 pallets
Floor area of rack: 43.5m long x 30m wide x 13m high
Workshop floor area: 58.5m long x 38m wide x 14m high

Multi Shuttle System Solution

Box size: L600 x W400 x H280; weight: 35kg/box
Cargo space: 29 rows x 19 columns x 15 levels
Total Storage: 16530 boxes
Floor area of rack: 30m long x 14m wide x 10m high
Workshop floor area: 40m long x 26m wide x 12m high

Four-way Shuttle System Solution

Ideal for various high-efficiency storage scenarios:

Line side library of smart factory workshop
Frozen/fresh food warehouse
Logistics transition center
Unmanned dark warehouse

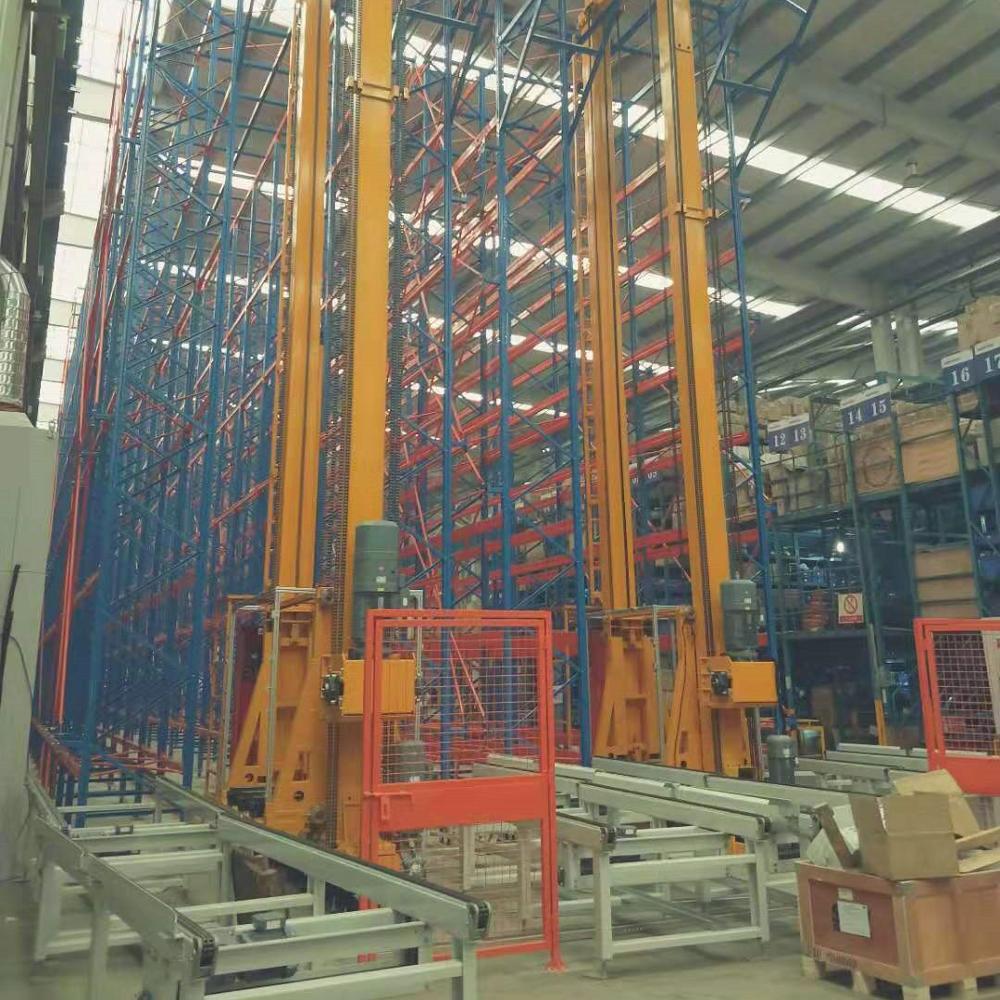

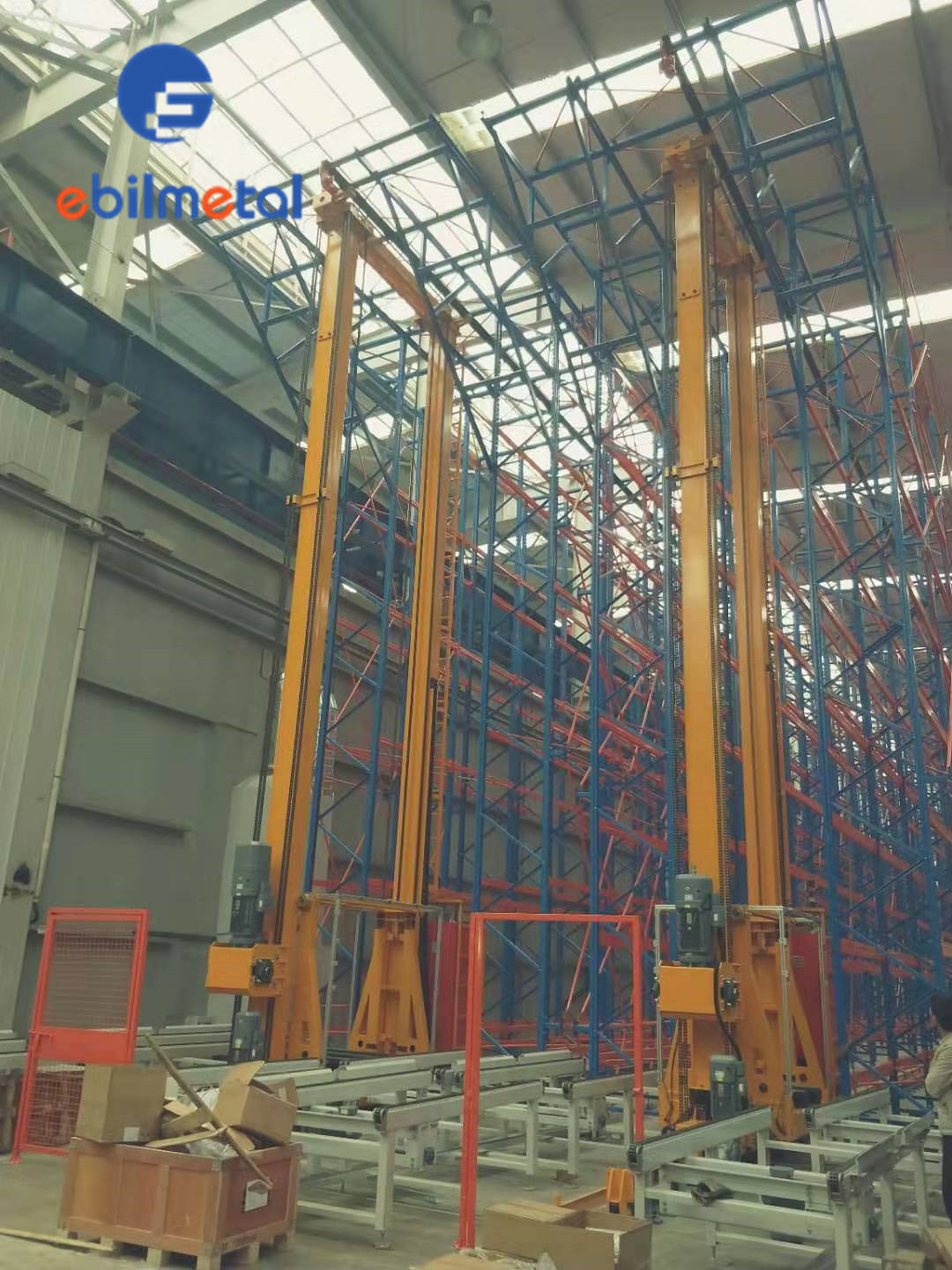

Stacker Crane System

Pallet size: L1200 x W1200 x H1200; weight: 1000kg/pallet
Cargo space: 27 rows x 20 columns x 12 levels
Total storage: 6480 pallets
Floor area of rack: 43m long x 45m wide x 19m high
Workshop floor area: 65m long x 55m wide x 200m high

Primary-secondary Shuttle Carrier Solution

Warehouse Control System (WCS)

The Warehouse Control System (WCS) serves as a bridge between the Warehouse Management System (WMS) and a broad range of material handling equipment such as conveyor systems, automated storage and retrieval systems, carousels, sorters, palletizers and so on.

Acting as a "hub", the WCS is responsible for keeping everything running smoothly and maximizing the efficiency of material handling systems and subsystems.

Project Gallery

Frequently Asked Questions (FAQ)

1. Are you a distributor or manufacturer? We are a professional and leading manufacturer with nearly 20 years of experience. We produce and export high-quality pallet racking, Multi-shuttle systems, Radio shuttle racking, and ASRS. Our annual production capacity is 100,000 tons of rack components and 1,000 units of shuttle cars.

2. What makes your automated systems unique? We have over 40 mechanical, electrical, and software engineers dedicated to R&D. We have developed independent WMS and WCS systems and hold more than 60 national patents, ensuring continuous technological innovation.

3. What is the typical lead time for an order? For normal orders, we promise a production time within 20-30 days. As a direct manufacturer, we ensure delivery times according to the formal contract.

4. Do you provide installation and debugging services? Yes, we have installation teams with extensive overseas experience. We send engineers to sites for debugging and training of radio shuttle cars. For racking systems, we can provide full installation or dispatch engineers to guide your operation.

5. What is the Minimum Order Quantity (MOQ)? Normally, the MOQ is one 20ft container. Larger quantities typically come with more competitive pricing.

6. What are the available payment terms? We accept payment via T/T (Telegraphic Transfer) or LC (Letter of Credit).
