Warehouse Stacker Crane Automated Storage Retrieval Racking System

Send Inquiry

Product Description

Stacker Cranes System + WMS & WCS

Unit Load automated warehouses maximize available space in existing structures and minimize storage space by up to 40 percent as compared to traditional storage solutions. Stacker cranes designed to work in narrow aisles nearly 100 feet off the ground, provide high density storage and automated operation.

Main Advantages

✓ Total control over inventory management.

✓ Fully automated entry and exit of products.

✓ Integrated management software coordinates all warehouse movement.

The Unit Load AS/RS is designed to provide versatility and control for any warehouse design. Fully compatible with any size pallet, the unit load racks can be single-depth or double-depth to maximize capacity. Customize the system for the application and storage requirements of each project.

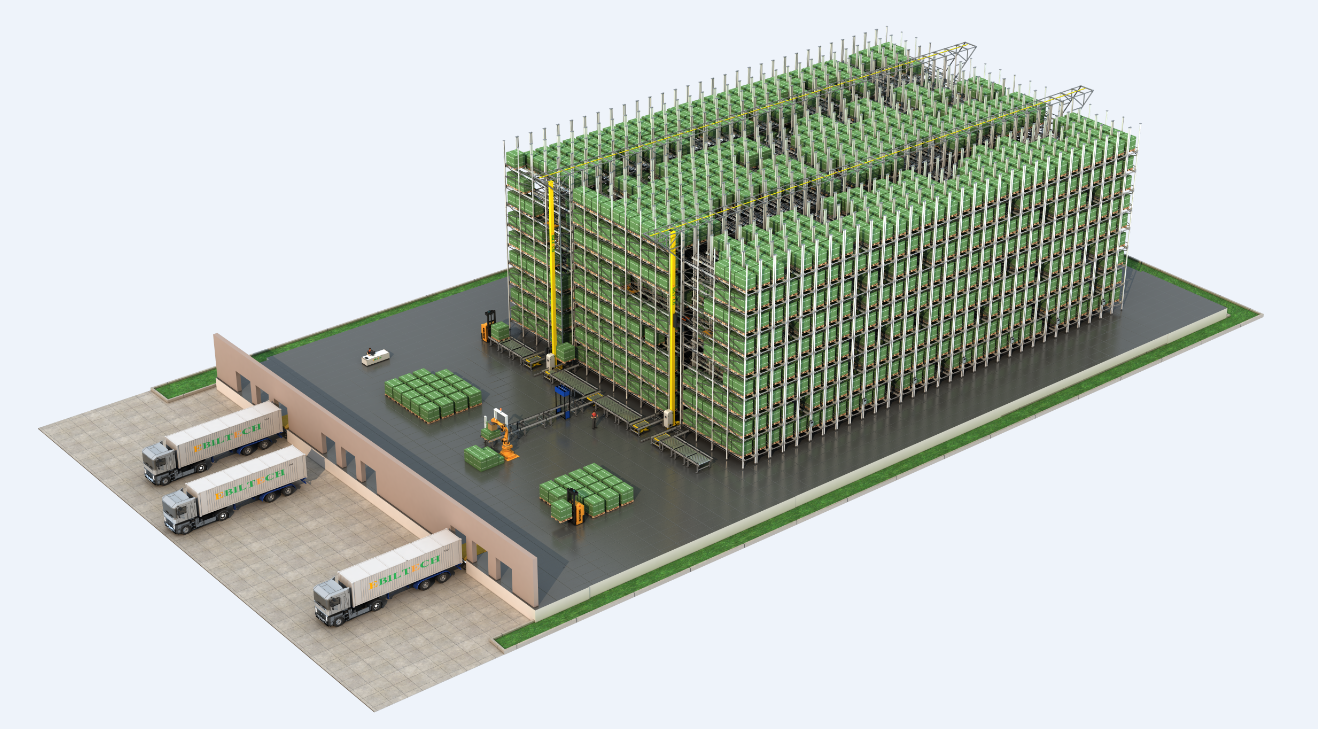

Pallet size: L1200 X W1200 X H1000; Weight: 1000kg/pallet

Cargo space: 22 rows x 31 columns x 9 levels

Total storage: 6138 pallets

Floor area of rack: 43.5m long X 30m wide x 13m high

Workshop floor area: 58.5m long x 38m wide x 14m high

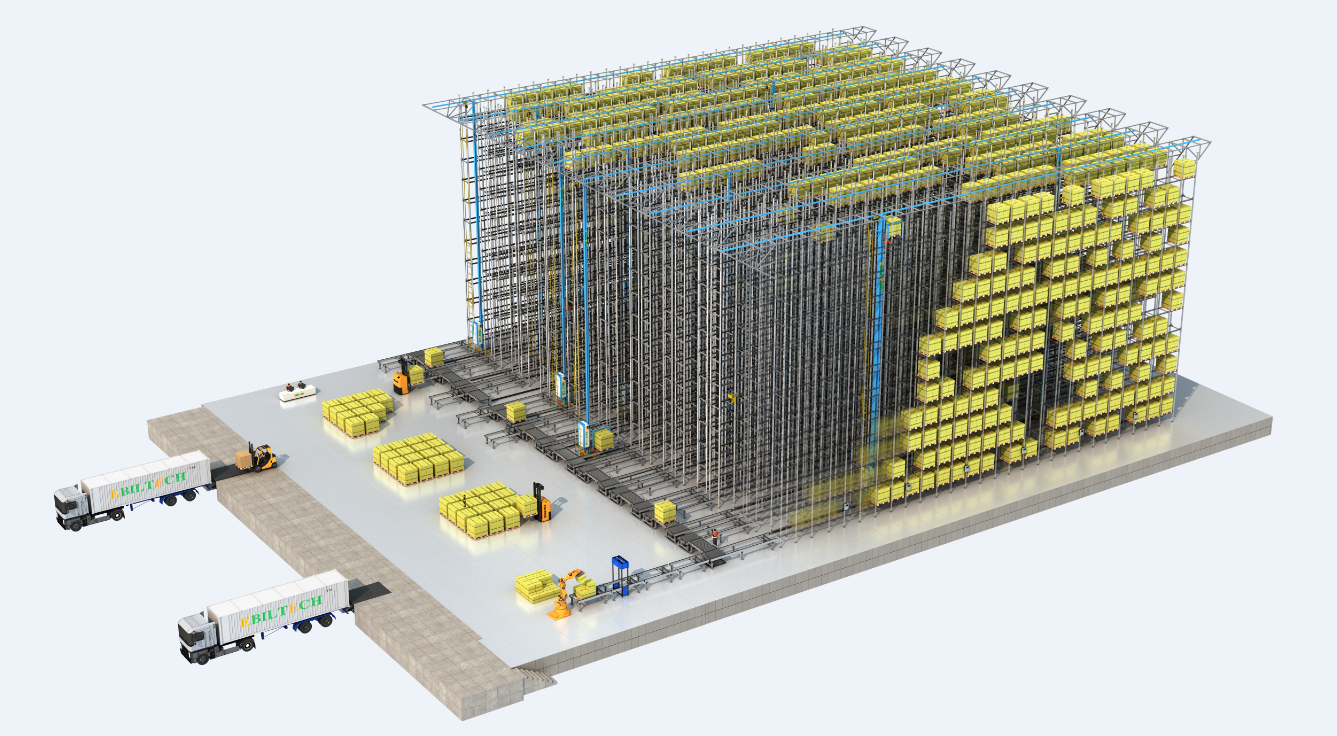

Pallet size: L1200 X W1200 X H1200; Weight: 1000kg/pallet

Cargo space: 27 rows x 20 columns x 12 levels

Total storage: 6480 pallets

Floor area of rack: 43m long X 45m wide x 19m high

Workshop floor area: 65m long x 55m wide x 20m high

Types of Stacker Cranes

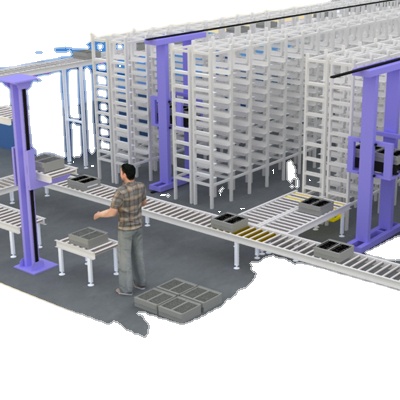

MINILOAD Stacker Crane

Single Column Stacker Crane

Double Column Stacker Crane

Heavy Stacker Crane

Management & Control Systems

◈ Flexibility, adaptability and scalability.

◈ Full Control & Customer service.

◈ Manage workflows & Integrate with any ERP.

◈ Profitability & Lower logistics overhead.

◈ Exact, high-speed picking.

◈ Automation of information flow.

The Warehouse Control System (WCS) serves as a bridge between the Warehouse Management System (WMS) and a broad range of material handling equipment such as conveyor systems, automated storage and retrieval systems, carousels, sorters, palletizers and so on. Acting as a “hub”, the WCS is responsible for keeping everything running smoothly and maximizing efficiency.

System Components & Gallery

Frequently Asked Questions

1. Are you a distributor or a manufacturer? We are a professional and leading manufacturer for nearly 20 years. We produce and export high-quality pallet racking, multi-shuttle systems, radio shuttle racking, and ASRS. Our annual production capacity is 100,000 tons of rack components and 1,000 units of shuttle cars.

2. What makes your automation systems different from others? We have more than 40 mechanical, electrical, and software engineers focusing on innovation. We possess over 60 national patents and have developed our own independent WMS and WCS systems to ensure seamless integration and high technical strength.

3. Do you provide installation and debugging services? Yes, we have installation teams with rich overseas experience. We send engineers to the site for debugging and training for shuttle cars. For racking systems, we can use our own teams or appoint engineers to guide your operation. We have successful projects in Southeast Asia, America, and Europe.

4. What is the typical manufacturing lead time? For normal orders, we promise to produce within 20-30 days. As a manufacturer, we ensure delivery times according to the formal contract specifications.

5. What is the Minimum Order Quantity (MOQ)? Normally, the MOQ is one 20ft container. However, larger quantities are eligible for more competitive pricing.

6. What are the accepted payment terms? We generally accept T/T (Telegraphic Transfer) or LC (Letter of Credit).
