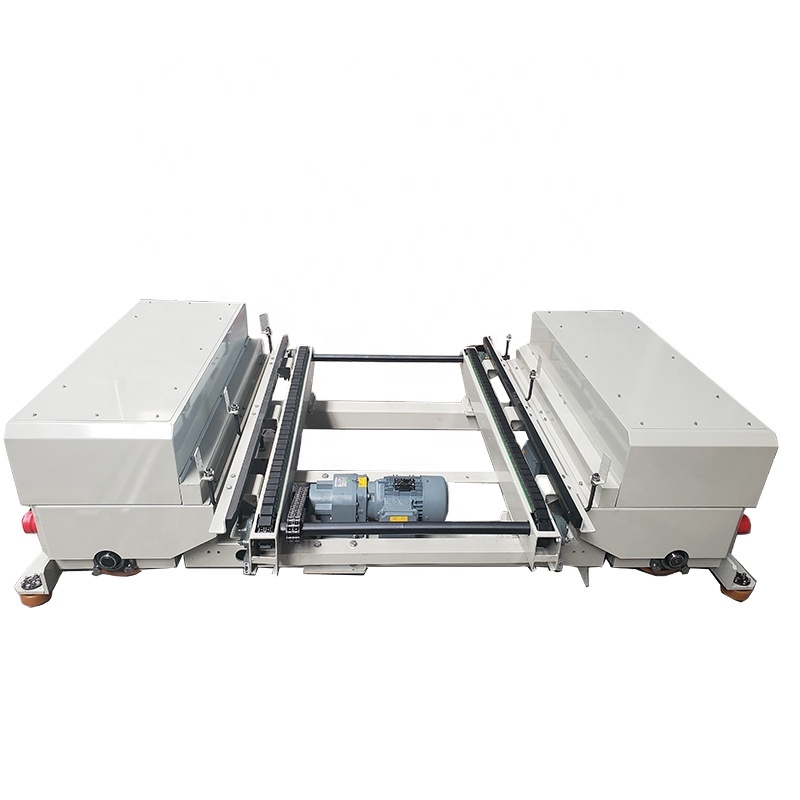

The ring-type shuttle (RGV) can move around the circular track. It features a sliding device on the top of the wheel which allows the wheel to move laterally when turning. The track is constructed from durable aluminum alloy. Both the side wheels and the drive systems utilize high-quality components, ensuring exceptional reliability. The whole machine has passed rigorous prototype verification.
In automated logistics conveying systems, the shuttle is a critical component. Its structure is simple yet maneuverable and flexible. Depending on site conditions, you can opt for straight-line operation, ring-type operation, or heavy-duty traverse operation. This automated shuttle can replace multiple pieces of ordinary conveying equipment, significantly enhancing automatic control efficiency.
This system is widely used in automated warehouses for daily necessities, medicine, tobacco, and packaging industries.
| Self-weight | 800 kg |
|---|---|
| Size (mm) | 2000 * 1400 * 850 |
| Capacity | 150 kg |
| Conveying Surface Height | 810 mm |
| Transfer Method | Chain Type |
| Transfer Speed | 12 m/min |
| Walking Performance | |
|---|---|
| No-load Speed | MAX 100 m/min |
| No-load Acceleration | 0.3 m/s² |
| Full Load Speed | 80 m/min |
| Full Load Acceleration | 0.3 m/s² |
| Positioning Accuracy | ≤ ±5mm |
| Docking Mode | 8Bit docking, task/handshake protocol |
Yes, we are a professional and leading manufacturer with nearly 20 years of experience. We produce high-quality pallet racking, multi-shuttle systems, radio shuttle racking, and ASRS with an annual capacity of 100,000 tons of components and 1,000 shuttle units.
We employ over 40 mechanical, electrical, and software engineers focusing on innovation. Our technical strength includes independent research and development of WMS and WCS systems, backed by more than 60 national patents.
For normal orders, we promise a production timeframe of 20-30 days, ensuring timely delivery according to the formal contract.
Yes, we have installation teams with extensive overseas experience. We send engineers to sites for debugging and training of radio shuttle cars and can provide guidance or full installation for racking systems.
Normally, the MOQ is one 20ft container. However, larger quantities are eligible for more competitive pricing.
We typically accept T/T (Telegraphic Transfer) or LC (Letter of Credit).
