Automated Storage and Retrieval Racking System Miniload Asrs Storage

Send Inquiry

Product Description

Radio Shuttle Racking Solution

Increased volume ratio

Higher warehouse-in/out efficiency than manual forklift

Manual remote control, realizing semi-automatic warehouse in/out

Out-of-stock mode: First in first out/first in last out

Technical Data:
Pallet size: L1200XW1000XH1150; weight: 1000kg/pallet
Cargo space: 36 rows x 19 columns x 6 levels
Total storage: 4104 pallets
Floor area of rack: 47m long X23m wide x 9m high
Workshop floor area: 60m long x 26m x 11m high

Stacker Crane + Pallet Runner System

Technical Data:
Pallet size: L1200XW1200XH1000; weight: 1000kg/pallet
Cargo space: 22 rows x 31 columns x 9 levels
Total storage: 6138 pallets
Floor area of rack: 43.5m long X 30m wide x 13m high
Workshop floor area: 58.5m long x 38m wide x 14m high

Multi Shuttle System Solution

Technical Data:
Box size: L600XW400XH280; weight: 35kg/box
Cargo space: 29 rows x 19 columns x 15 levels
Total Storage: 16530 boxes
Floor area of rack: 30m long X14m wide x 10m high
Workshop floor area: 40m long x 26m wide x 12m high

Four-way Shuttle System Solution

Line side library of smart factory workshop

Frozen/fresh food warehouse

Logistics transition center

Unmanned dark warehouse

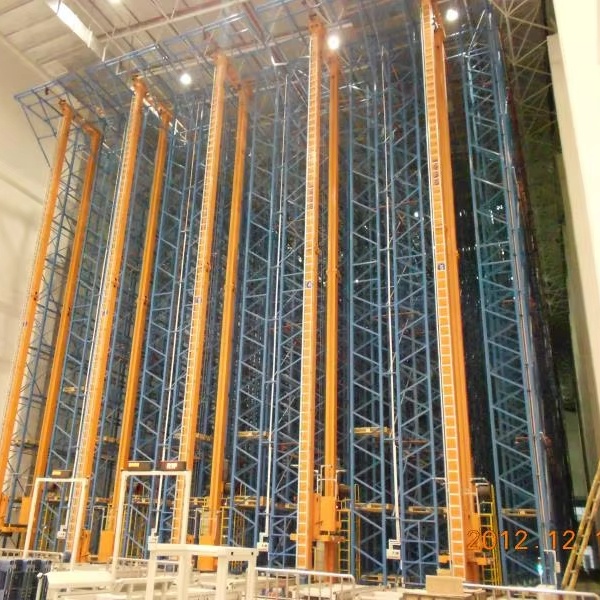

Stacker Crane & Shuttle Carrier Solutions

Stacker Crane System: 6480 pallets storage, 19m height rack area.

Primary-secondary Shuttle Carrier: 6138 pallets capacity, efficient logistics transition.

Warehouse Control System (WCS)

The Warehouse Control System (WCS) serves as a bridge between the Warehouse Management System (WMS) and a broad range of material handling equipment such as conveyor systems, automated storage and retrieval systems, carousels, sorters, palletizers and so on.

Acting as a “hub”, the WCS is responsible for keeping everything running smoothly and maximizing the efficiency of material handling systems and subsystems.

Production & Quality Showcase

Technical Specifications & Flowcharts

Frequently Asked Questions

Are you a distributor or a manufacturer?

We are a professional and leading manufacturer for nearly 20 years. We produce and export high-quality pallet racking, multi-shuttle systems, radio shuttle racking, and ASRS with an annual production capacity of 100,000 tons of rack components and 1,000 units of shuttle cars.

What makes your solutions different from others?

We have over 40 mechanical, electrical, and software engineers focusing on innovation. We hold more than 60 national patents and independently develop our own WMS and WCS systems to ensure seamless integration and technical superiority.

What is your typical manufacturing lead time?

For normal orders, we promise to complete production within 20-30 days. As a direct factory, we ensure strict adherence to delivery times as per formal contracts.

Do you provide installation and debugging services?

Yes, we have installation teams with extensive overseas experience. We send engineers to sites for debugging and staff training. We have successfully completed projects across Southeast Asia, America, and Europe.

What is the Minimum Order Quantity (MOQ)?

The standard MOQ is one 20ft container, though we offer competitive pricing for larger volume orders.

What are the accepted payment terms?

We primarily accept T/T (Telegraphic Transfer) or LC (Letter of Credit).
