Automatic Warehouse Van Pallet Racking Retrieval Racking ASRS System

Send Inquiry

Product Description

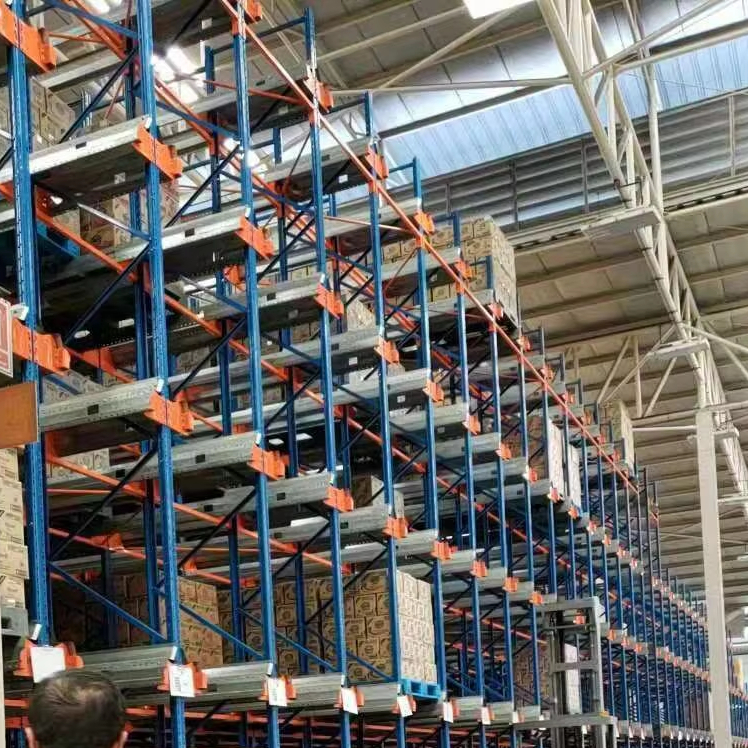

⚙️Radio Shuttle Racking Solution

Increased volume ratio
Higher warehouse-in/out efficiency than manual forklift
Manual remote control, realizing semi-automatic operation
Inventory Mode: FIFO (First-In, First-Out) / FILO (First-In, Last-Out)
Pallet Size: L1200 x W1000 x H1150; Weight: 1000kg/pallet
Storage Capacity: 4104 pallets (36 rows x 19 columns x 6 levels)
Rack Dimensions: 47m (L) x 23m (W) x 9m (H)

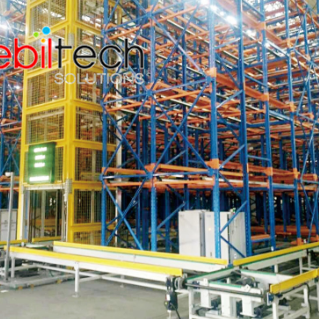

🏗️Stacker Crane + Pallet Runner System

Fully automated storage and retrieval
Pallet Size: L1200 x W1200 x H1000; Weight: 1000kg/pallet
Storage Capacity: 6138 pallets (22 rows x 31 columns x 9 levels)
Rack Area: 43.5m (L) x 30m (W) x 13m (H)
Workshop Requirement: 58.5m (L) x 38m (W) x 14m (H)

📦Multi Shuttle System Solution

Optimized for box-unit handling
Box Size: L600 x W400 x H280; Weight: 35kg/box
Storage Capacity: 16530 boxes (29 rows x 19 columns x 15 levels)
Rack Area: 30m (L) x 14m (W) x 10m (H)
Workshop Requirement: 40m (L) x 26m (W) x 12m (H)

🔄Four-way Shuttle System

Ideal Applications:

Smart factory workshop line-side libraries
Frozen and fresh food cold storage
Logistics transition and distribution centers
Unmanned "dark" warehouses

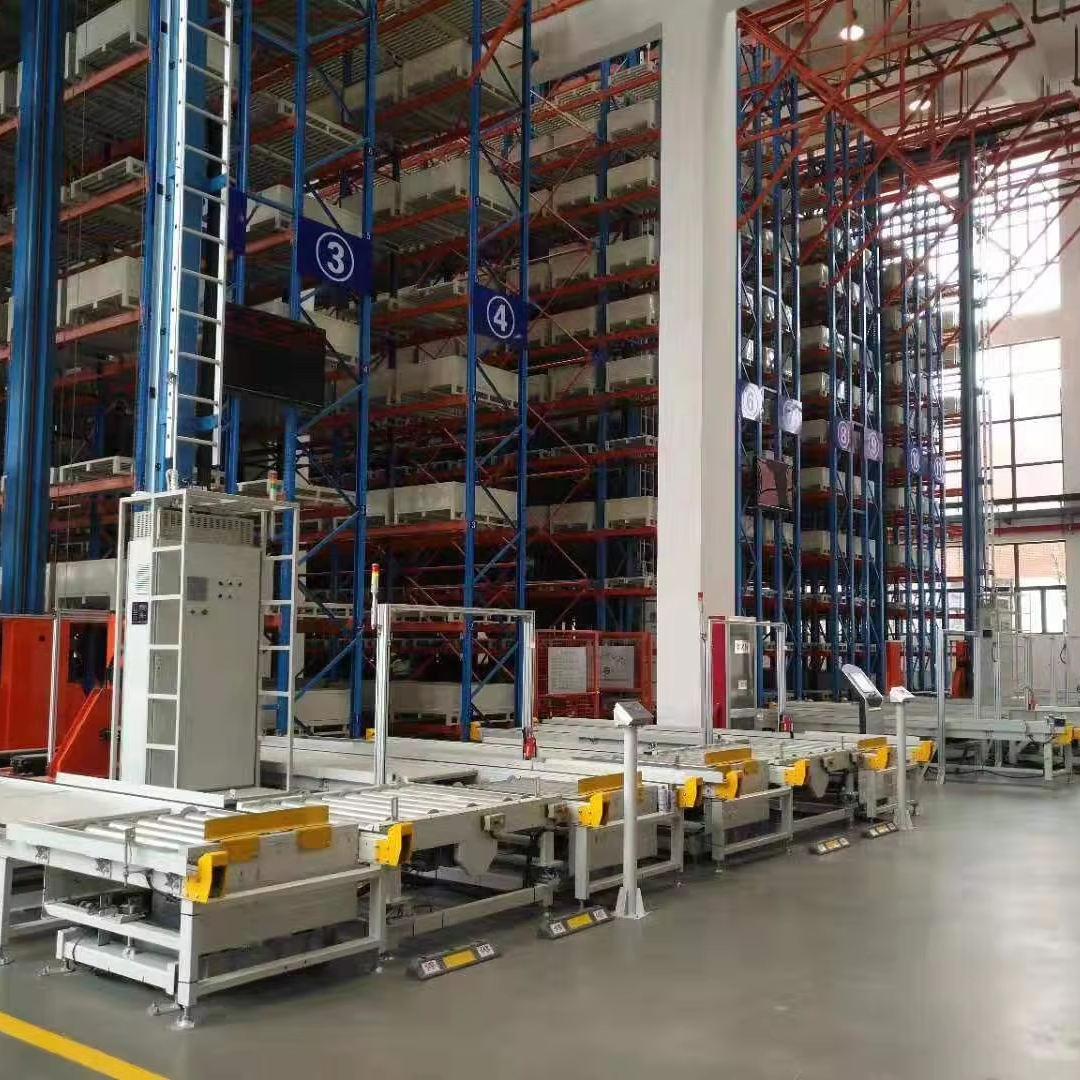

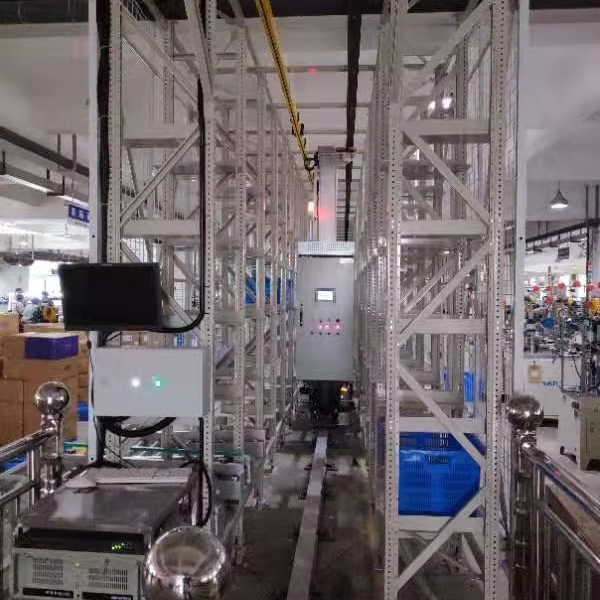

🏙️Stacker Crane System (AS/RS)

High-bay vertical storage optimization
Pallet Size: L1200 x W1200 x H1200; Weight: 1000kg/pallet
Storage Capacity: 6480 pallets (27 rows x 20 columns x 12 levels)
Rack Area: 43m (L) x 45m (W) x 19m (H)
Workshop Requirement: 65m (L) x 55m (W) x 20m (H)

🚄Primary-secondary Shuttle Carrier

Dynamic mother-child shuttle coordination
Storage Capacity: 6138 pallets
Rack Area: 43.5m (L) x 30m (W) x 13m (H)

💻Warehouse Control System (WCS)

The Warehouse Control System (WCS) serves as a critical bridge between the Warehouse Management System (WMS) and various material handling equipment including conveyor systems, automated storage and retrieval systems (AS/RS), carousels, and sorters.

Acting as the central "hub," the WCS ensures smooth operations and maximizes the efficiency of all automated subsystems.

📸Global Project Cases

Frequently Asked Questions

1. Are you a manufacturer or a distributor?

We are a professional and leading manufacturer with nearly 20 years of experience. We specialize in high-quality pallet racking, multi-shuttle systems, radio shuttle racking, and AS/RS. Our annual production capacity reaches 100,000 tons of rack components and 1,000 shuttle units.

2. What sets your automation solutions apart from others?

We employ over 40 mechanical, electrical, and software engineers focused on R&D and innovation. We hold over 60 national patents and have independently developed our own WMS and WCS systems. This ensures seamless integration and high technical reliability for every project.

3. What is the typical lead time for an order?

For standard orders, our manufacturing time is generally within 20 to 30 days. As a direct factory, we ensure strict adherence to delivery schedules as outlined in our formal contracts.

4. Do you provide installation and debugging services?

Yes, we have experienced installation teams for overseas projects. For shuttle cars, we dispatch engineers for on-site debugging and staff training. For racking systems, we can either provide full installation or send engineers to guide your local team.

5. What is the Minimum Order Quantity (MOQ)?

The typical MOQ is one 20ft container. However, we offer competitive pricing structures for larger volume orders.

6. What payment terms do you accept?

We primarily accept T/T (Telegraphic Transfer) or LC (Letter of Credit).
