Free Design ASRS System Industrial Automatic Warehouse High Density Storage Pallet Rack OEM ODM with Warehousing Equipment

1 / 5

Free Design ASRS System Industrial Automatic Warehouse High Density Storage Pallet Rack OEM ODM with Warehousing Equipment

Send Inquiry

Product Description

Radio Shuttle Racking Solution

Increased volume ratio;

Higher warehouse-in/out efficiency than manual forklift;

Manual remote control, realizing semi-automatic warehouse in/out;

Out-of-stock mode: First in first out (FIFO) / First in last out (FILO);

Technical Specifications:

Pallet size: L1200 X W1000 X H1150; Weight: 1000kg/pallet
Cargo space: 36 rows x 19 columns x 6 levels
Total storage: 4104 pallets
Rack area: 47m (L) x 23m (W) x 9m (H)
Workshop area: 60m (L) x 26m (W) x 11m (H)

Stacker Crane + Pallet Runner System

Pallet size: L1200 X W1200 X H1000; Weight: 1000kg/pallet
Cargo space: 22 rows x 31 columns x 9 levels
Total storage: 6138 pallets
Rack area: 43.5m (L) x 30m (W) x 13m (H)
Workshop area: 58.5m (L) x 38m (W) x 14m (H)

Multi Shuttle System Solution

Box size: L600 X W400 X H280; Weight: 35kg/box
Cargo space: 29 rows x 19 columns x 15 levels
Total Storage: 16530 boxes
Rack area: 30m (L) x 14m (W) x 10m (H)
Workshop area: 40m (L) x 26m (W) x 12m (H)

Four-way Shuttle System Solution

Ideal Applications:

✔

Line side library of smart factory workshop.

✔

Frozen/fresh food warehouse.

✔

Logistics transition center.

✔

Unmanned dark warehouse.

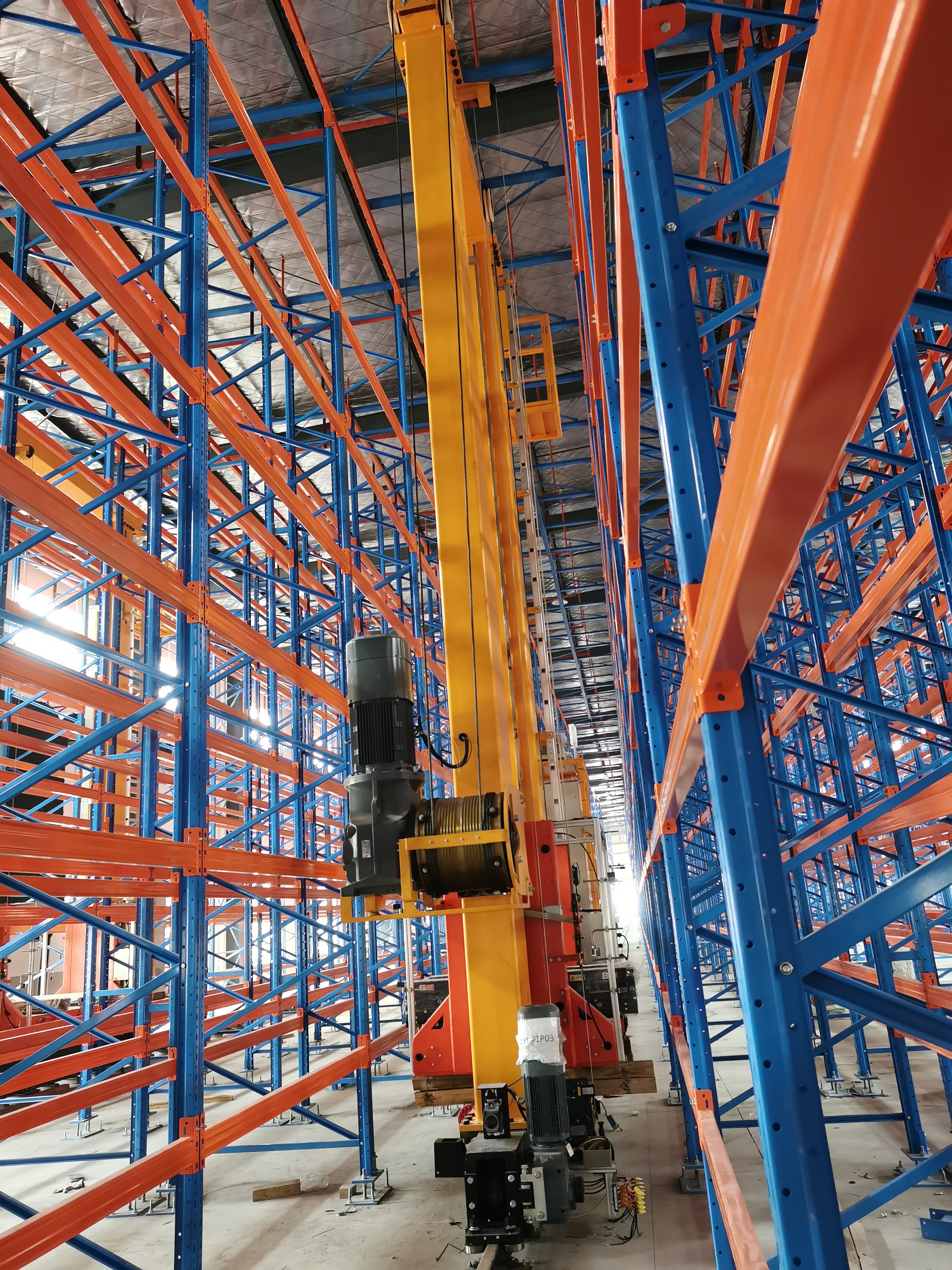

Stacker Crane System (AS/RS)

Pallet size: L1200 X W1200 X H1200; Weight: 1000kg/pallet
Cargo space: 27 rows x 20 columns x 12 levels
Total storage: 6480 pallets
Rack area: 43m (L) x 45m (W) x 19m (H)
Workshop area: 65m (L) x 55m (W) x 20m (H)

Primary-secondary Shuttle Carrier Solution

Pallet size: L1200 X W1200 X H1000; Weight: 1000kg/pallet
Cargo space: 22 rows x 31 columns x 9 levels
Total storage: 6138 pallets
Rack area: 43.5m (L) x 30m (W) x 13m (H)
Workshop area: 58.5m (L) x 38m (W) x 14m (H)

Warehouse Control System (WCS)

The Warehouse Control System (WCS) serves as a bridge between the Warehouse Management System (WMS) and a broad range of material handling equipment such as conveyor systems, automated storage and retrieval systems, carousels, sorters, and palletizers.

Acting as a "hub", the WCS is responsible for keeping everything running smoothly and maximizing the efficiency of material handling systems and subsystems.

System Components & Manufacturing

Quality Assurance & Global Reach

Frequently Asked Questions

1. Are you a distributor or manufacturer?

We are a professional and leading manufacturer for nearly 20 years. We produce and export high-quality pallet racking, multi-shuttle systems, radio shuttle racking, and AS/RS systems. Our annual production capacity is 100,000 tons of rack components and 1,000 units of shuttle cars.

2. What makes your solutions different from others?

We have over 40 mechanical, electrical, and software engineers focusing on product innovation and R&D. We cooperate with domestic research institutes and hold more than 60 national patents. Our independent research and development include proprietary WMS and WCS systems.

3. What are the installation and debugging services?

We have installation teams with rich overseas experience. For radio shuttle cars, we send engineers to the site for debugging and training. For racking systems, we can provide full installation or appoint engineers to guide the operation. We have completed many projects in Southeast Asia, America, and Europe.

4. What is the minimum order quantity (MOQ)?

Normally the MOQ is one 20ft container, though larger quantities benefit from better pricing.

5. What is the manufacturing lead time?

For normal orders, we promise production within 20-30 days. As a direct manufacturer, we ensure delivery times according to the formal contract.

6. What are the payment terms?

We accept T/T (Telegraphic Transfer) or L/C (Letter of Credit).
